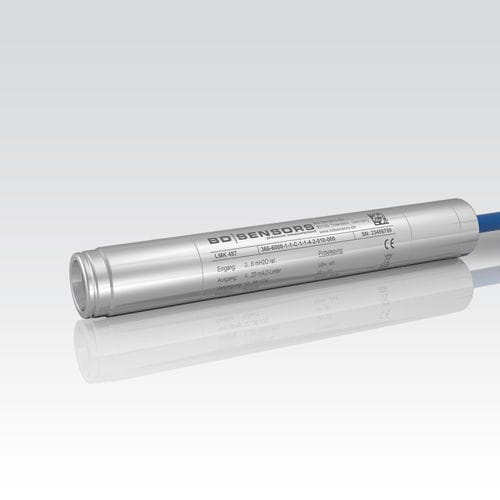

Hydrostatic level sensor - LMK 487 - BD|SENSORS GmbH - for liquids / for storage tanks / for fill monitoring

Characteristics

Technology

hydrostatic

Medium

for liquids

Applications

for storage tanks, for fill monitoring, for the food and beverage industry

Other characteristics

stainless steel, ATEX, with data logger, clamp-on, IP68

Level range

Max.: 200 m
(656'02" )

Min.: 0.4 m
(1'03" )

Process pressure

Max.: 10 bar
(145.04 psi)

Min.: 0.1 bar
(1.45 psi)

Process temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

The hydrostatic probe LMK 487 has been developed for measuring levels in various tank applications for shipbuilding and offshore. In comparison to the hydrostatic probe LMK 458 the external diameter amounts to only 22 mm by which the installation in 1" pipes can be carried out easily. Beside the housing materials stainless steel and titanium, elastomer materials are available by which an optimum adaption to the application can be ensured. Features accuracy: 0.25 % FSO output signal 4 ... 20mA / 2-wire diameter 22 mm shipping approvals: LR (Lloyd´s Register), DNV(Det Norske Veritas), GL (Germanischer Lloyd), ABS (American Bureau of Shipping), CCS (China Classification Society) high long term stability diaphragm ceramics Al2O3 (99.9 %) Optional Features IS-version Ex ia = intrinsically safe for gases and dusts housing material titanium temperature element Pt 100 different kinds of elastomer
