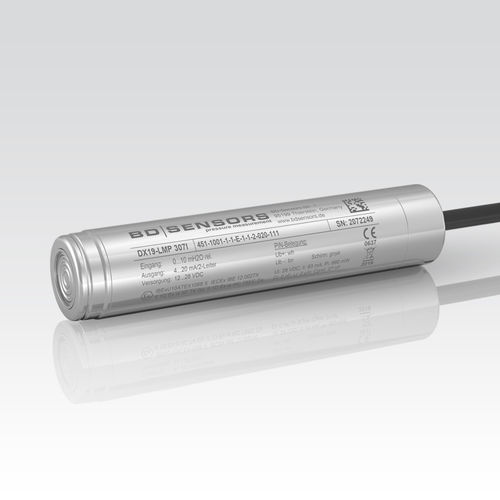

Hydrostatic level sensor LMP 307i
for waterfor fuelfor oil

hydrostatic level sensor
hydrostatic level sensor
hydrostatic level sensor
hydrostatic level sensor
Add to favorites
Compare this product


Characteristics

Technology
hydrostatic
Medium
for water, for fuel, for oil, for wastewater
Interface
not specified
Applications
for storage tanks, for fill monitoring, for silos, for basin, for hazardous areas, river, for the food and beverage industry, for small access holes
Other characteristics
stainless steel, ATEX, with data logger, clamp-on, IP68
Level range

Max.: 250 m
(820'02" )

Min.: 1 m
(3'03" )

Process pressure

Max.: 20 bar
(290.08 psi)

Min.: 0.4 bar
(5.8 psi)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

The stainless steel probe LMP 307i is designed for continuous level measurement in water and clean or lightly polluted fluids. Basic element is a high quality stainless steel sensor with high requirements for exact measurement with good long term stability Features: - nominal pressure from 0 ... 4 mH2O up to 0 ... 200 mH2O - output signals: 2-wire: 4 ... 20 mA, 3-wire: 0 ... 10 V (others on request) - diameter 26.5 mm - small thermal effect - excellent accuracy - excellent long term stability Optional features: - IS-version Ex ia = intrinsically safe for gas and dust - drinking water certificate according to DVGW and KTW - different kinds of cables and elastomers
