Hydrostatic level sensor LMK 358Hfor waterfor fuelfor oil
Add to favorites
Compare this product
Characteristics
- Technology
- hydrostatic
- Medium
- for water, for fuel, for oil, for wastewater, for sludge, for high-viscosity liquids
- Applications
- for small tanks, for fill monitoring, fuel tank, for OEM, for industrial applications, for hazardous areas, for CSO monitoring
- Other characteristics
- stainless steel, explosion-proof, temperature-compensated, IP68
- Level range
Max.: 100 m
(328'01" )Min.: 0.6 m
(1'11" )- Process pressure
Max.: 10,000 mbar
(145.04 psi)Min.: 60 mbar
(0.87 psi)- Process temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description

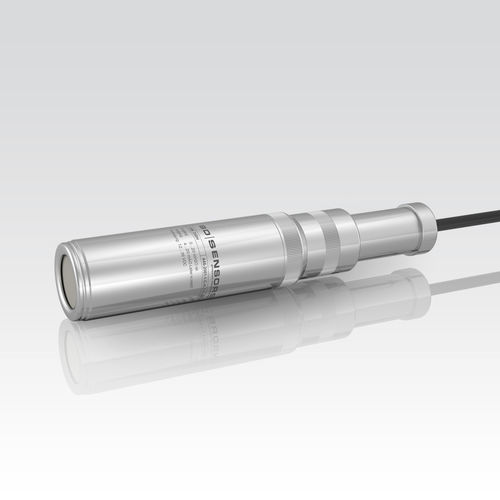

The detachable stainless steel probe LMK 358H has been designed for level measurement in waste water, waste and higher viscosity media. Basic element is a capacitive ceramic sensor.
In order to facilitate stock-keeping and maintenance the transmitter head is plugged to the cable assembly with a connector and can be changed easily.
Features:
- accuracy: 0.1 %
- diameter 39.5 mm
- cable and sensor section detachable
- HART®-communication (setting of offset. span and damping)
- permissible temperatures up to 85 °C
- high long term stability
Optional Features:
- IS-version
Ex ia = intrinsically safe for gas and dust
- cable protection via corrugated pipe
- diaphragm (AI2O3 99.9 %)
- accessories e.g. mounting flange with cable gland and terminal clamp
Catalogs
data sheet LMK 358 H
5 Pages
Exhibitions
Meet this supplier at the following exhibition(s):
