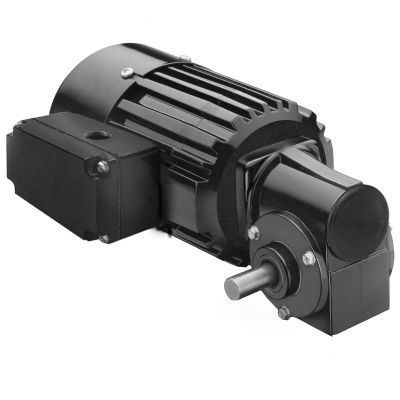

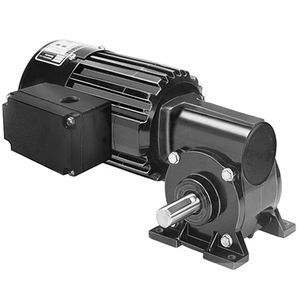

Model 1491 Metric 34R4BFCI-3F Series AC Right Angle Gearmotor. Single-phase 230 V, 50 Hz unit designed for metric mounting and metric drive shaft dimensions. Output power 50 W, nominal speed 35 rpm.

Specifications

• Speed: 35 rpm
• Rated torque: 4.2 Nm (37 lb-in)
• Power: 50 W (0.0667 HP)
• Voltage/frequency: 230 V, 50 Hz, single-phase
• Current: 0.50 A
• Gear ratio: 40
• Radial load capacity: 180 N (40 lbs)
• Length XH: 221 mm (8.69 in)
• Weight: 4.5 kg (10.1 lbs)
• Connection diagram ID: 07410021
• Capacitor part number: 49401068
• Product type: 34R4BFCI-3F

Standard Features

• Metric mounting threads and metric drive shaft dimensions
• Die-cast terminal box with terminal block installed. IP-44
• Fan-cooled for high output power
• Class B insulation system operated within Class A limits to prolong winding and lubricant life
• Aluminum center ring and endshields for thermal efficiency and reduced weight
• Industrial lip-type seals on motor and output shafts
• Bronze sleeve bearings on output shaft with felt-wick lubrication reservoir for quiet operation
• Permanently lubricated gearing with semi-fluid grease for long life
• Bronze worm gear hardened and ground for high shock-load capability and durability

Optional Accessories

• Die-cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• Die-cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Capacitor; plastic box type; 5.0 MFD / 400V [item 49401068]
• Large die-cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

Available Downloads (types)
CAD drawings (PDF/DWG/STEP available from manufacturer), wiring diagram, safety data sheets
