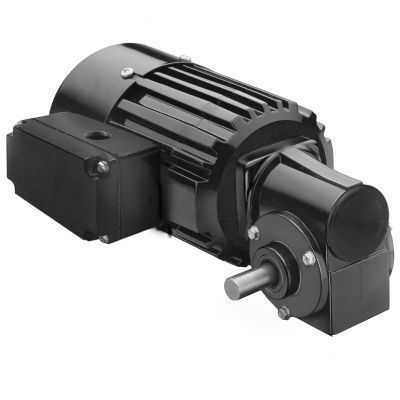

AC gear-motor Model 1490

single-phasewormright angle

Product
Model 1490 from the Metric 34R-3F Series AC right angle gearmotor family. Single-phase 230 V 50 Hz unit delivering 70 rpm output and 3.4 Nm rated torque, designed for industrial low-speed, high-torque applications.

Specifications

• Speed (rpm): 70
• Rated Torque: 3.4 Nm (30 lb-in)
• Power: 50 W (1/15 HP, HPDecimal 0.0667)
• Voltage / Frequency: 230 V / 50 Hz
• Phases: Single phase (1)
• Current: 0.50 A
• Gear Ratio: 20
• Radial Load Capacity: 180 N (40 lbs)
• Length XH: 221 mm (8.69 in)
• Weight: 4.5 kg (10.1 lbs)
• Connection Diagram: 07410021
• Capacitor Part Number: 49401068
• Product Type: 34R4BFCI-3F

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Die cast terminal box with terminal block installed. IP-44.
• Fan cooled for high output power.
• Class B insulation system operated within Class A limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Industrial lip type seals on motor and output shafts.
• Bronze sleeve bearings on output shaft oiled by felt wicks and reservoir for quiet operation.
• Permanently lubricated gearing using semi-fluid grease for long life.
• Bronze worm gear hardened and ground for high shock-load capability and durability.

Optional Accessories

• Base plate mounting kit for 3F gearmotors (model 0967).
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984).
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984).
• Capacitor; plastic box type; 5.0 MFD / 400V (Item 49401068).
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986).

Available Downloads
CAD drawings available in PDF, DWG and STEP formats. Wiring diagram (Connection Diagram 07410021) and Safety Data Sheet available.

Technical characteristics

• Model: 1490
• Series: Metric 34R-3F
• Speed: 70 rpm
• Rated torque: 3.4 Nm (30 lb-in)
• Power: 50 W (1/15 HP)
• Voltage: 230 V
• Frequency: 50 Hz
• Phases: 1 (single phase)
• Current: 0.50 A
• Gear ratio: 20
• Radial load capacity: 180 N (40 lbs)
• Length XH: 221 mm (8.69 in)
• Weight: 4.5 kg (10.1 lbs)
• Connection diagram reference: 07410021
• Capacitor part number: 49401068
• Product type: 34R4BFCI-3F
