AC gear-motor Model 1260

single-phasewormhelical gear

Product

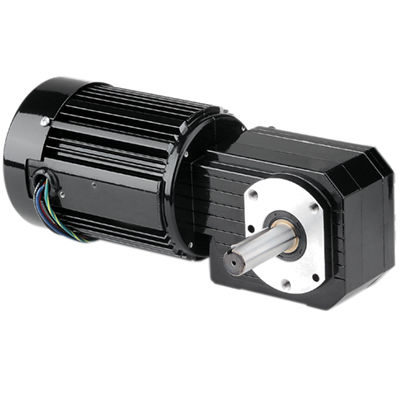

Model 1260 Metric 42R-GB Series AC Right Angle Gearmotor

Overview
Right-angle AC gearmotor from the Metric 42R-GB series. Totally enclosed IP-20, fan-cooled for high output power. Metric mounting threads and metric drive shaft dimensions. Designed with hardened worm and helical gearing, permanently lubricated gearing and bearings throughout to increase radial load capacity and service life.

Specifications

• Speed (rpm): 23
• Rated Torque (Nm): 23
• Rated Torque (lb-in): 204
• Power (Watts): 100
• Power (HP): 1/7.5
• Volts: 230
• Hz: 50
• Phases: 1
• Amps: 0.78
• Gear Ratio: 60
• Radial Load (N): 900
• Radial Load (lbs): 200
• Length XH (mm): 294
• Length XH (inch): 11.57
• Weight (kg): 8
• Weight (lbs): 17.5
• Connection Diagram: 07410021
• Capacitor Part Number: 49401154
• Product Type: 42R5BFCI-GB
• HPDecimal: 0.1333

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed IP-20 rating.
• Fan cooled for high output power.
• Class "B" insulation system operated within Class "A" limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing oil for long life.
• Hardened helical output gearing for quietness and high output torque.
• Bronze worm gear for high shock load capability.
• Hardened and ground worm gear for strength and long life.

Available Documents / Downloads

• CAD drawings available (PDF, DWG, STEP formats).
• Wiring diagram available (connection diagram number 07410021).
• Safety Data Sheet available (ExxonMobil MSDS referenced).

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984).
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984).
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154).
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986).

Technical specifications

• Speed: 23 rpm
• Rated Torque: 23 Nm (204 lb-in)
• Power: 100 W (0.1333 HP)
• Voltage/Frequency: 230 V, 50 Hz, single phase
• Current: 0.78 A
• Gear Ratio: 60
• Radial Load Capacity: 900 N (200 lbs)
• Length XH: 294 mm (11.57 in)
• Weight: 8 kg (17.5 lbs)
• Connection diagram reference: 07410021
• Capacitor part number: 49401154
• Product type: 42R5BFCI-GB
