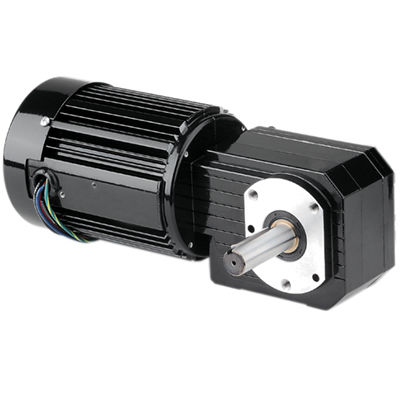

AC gear-motor Model 1266
single-phasewormhelical gear

AC gear-motor - Model 1266 - BODINE ELECTRIC COMPANY - single-phase / worm / helical gear
AC gear-motor - Model 1266 - BODINE ELECTRIC COMPANY - single-phase / worm / helical gear
Add to favorites
Compare this product
Go to the BODINE ELECTRIC COMPANY website for more information

Characteristics

Motor type
AC, single-phase
Type
worm, helical gear
Shaft orientation
right angle
Power
50 W...100 W
Torque
20 - 50 Nm
Performance
low-noise
Other characteristics
aluminum frame
Gear ratio

280 unit

Rotational speed

5 rpm
(31.4159 rad.min-1)

Description

Product
AC Right-Angle Gearmotor Model 1266 Metric 42R-GB Series

Specifications
  • Speed (rpm): 5
  • Rated Torque (Nm): 43
  • Rated Torque (lb-in): 380
  • Power (Watts): 100
  • Power (HP): 0.1333 (1/7.5)
  • Voltage/Frequency: 230 V, 50 Hz, Single-phase
  • Current (A): 0.78
  • Gear Ratio: 280
  • Radial Load Capacity: 900 N (200 lbs)
  • Length XH: 294 mm (11.57 in)
  • Weight: 8 kg (17.5 lbs)
  • Connection diagram reference: 07410021
  • Capacitor part number: 49401154
  • Product type: 42R5BFCI-GB


Standard Features
  • Metric mounting threads and metric drive shaft dimensions
  • Totally enclosed, IP-20 rating
  • Fan cooled for high output power
  • Class 'B' insulation system operated within Class 'A' limits to extend winding and lubricant life
  • Aluminum center ring and endshields for high thermal efficiency and reduced weight
  • Unvented gearhousing
  • Industrial lip-type seals on motor and output shafts
  • Bearings throughout for increased radial load capacity and long service life
  • Permanently lubricated gearing using oil for extended life
  • Hardened helical output gearing for quiet operation and high torque
  • Bronze worm gear for high shock-load capability
  • Hardened and ground worm for strength and long life


Optional Accessories
  • Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
  • Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
  • Capacitor; plastic box type; 7.5 MFD 370 V (item 49401154)
  • Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)


Technical specifications
  • Model: 1266
  • Series: Metric 42R-GB
  • Speed: 5 rpm
  • Rated Torque: 43 Nm (380 lb-in)
  • Power: 100 W (0.1333 HP / 1/7.5 HP)
  • Voltage/Frequency: 230 V, 50 Hz, Single-phase
  • Current: 0.78 A
  • Gear Ratio: 280
  • Radial Load Capacity: 900 N (200 lbs)
  • Length XH: 294 mm (11.57 in)
  • Weight: 8 kg (17.5 lbs)
  • Connection diagram reference: 07410021
  • Capacitor part number: 49401154
