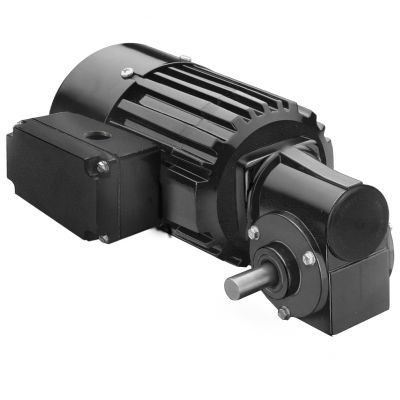

AC gear-motor Model 1487

single-phasewormright angle

Product
Model 1487 of the Metric 34R-3F Series AC right angle gearmotor. Single-phase AC gearmotor designed for metric mounting threads and metric drive shaft dimensions.

Specifications (as shown on page)
Speed (rpm) : 47
Rated Torque (Nm) : 3.8
Rated Torque (lb-in) : 34
Power (Watts) : 50
Power (HP) : 1/15
Volts : 230
Hz : 50
Phases : 1
Amps : .50
Gear Ratio : 30
Radial Load (N) : 180
Radial Load (lbs) : 40
Length XH (mm) : 221
Length XH (inch) : 8.69
Weight (kg) : 4.5
Weight (lbs) : 10.1
Connection Diagram : 07410021
Capacitor Part Number : 49401068
Product Type : 34R4BFCI-3F
HPDecimal : 0.0667

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Die cast terminal box with terminal block installed. IP-44.
• Fan cooled for high output power.
• Class "B" insulation system operated within Class "A" limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Industrial lip type seals on motor and output shafts.
• Bronze sleeve bearings on output shaft oiled by felt wicks and reservoir for quietness.
• Permanently lubricated gearing utilizing semi fluid grease for long life.
• Bronze worm gear for high shock load capability.
• Hardened and ground worm gear for strength and long life.

Available downloadable resources (types listed on page)
CAD drawings (PDF/DWG/STEP selectable), wiring diagram, safety data sheets are provided for the product.

Optional Accessories (listed on page)

• Base plate mounting kit for 3F gearmotors [model 0967]
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Capacitor; plastic box type; 5.0 MFD / 400V [Item 49401068]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

Notes
Single-phase 230 V / 50 Hz, fan-cooled, IP-44 die cast terminal box with terminal block installed. Permanently lubricated gearing; bronze worm gear and bronze sleeve bearings.

Caractéristiques / spécifications techniques

• Model: Model 1487
• Series: Metric 34R-3F Series
• Speed: 47 rpm
• Rated torque: 3.8 Nm (34 lb-in)
• Power: 50 W (1/15 HP, HPDecimal 0.0667)
• Voltage / Frequency: 230 V / 50 Hz (single phase)
• Current: 0.50 A
• Gear ratio: 30
• Radial load capacity: 180 N (40 lbs)
• Length XH: 221 mm (8.69 in)
• Weight: 4.5 kg (10.1 lbs)
• Connection diagram reference: 07410021
• Capacitor part number: 49401068
• Product type designation: 34R4BFCI-3F
