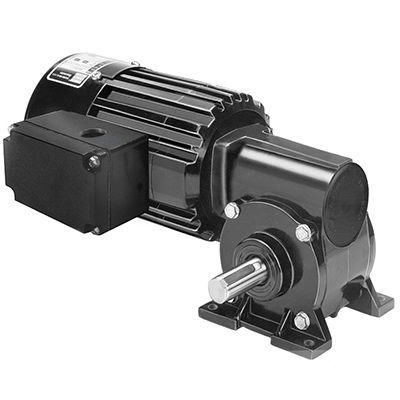

AC gear-motor Model 1469

single-phasewormright angle

Overview
Model 1469 from the Metric 34R-5F Series AC right angle gearmotor family by Bodine Electric. Nominal operating point: 23 rpm; 72 lb·in (8.1 Nm); 1/15 HP (50 W); 230 V AC, single phase.

CAD Drawings
Downloadable CAD resources available for model 1469: PDF, DWG, STEP.

Wiring Diagram
Connection diagram available as PDF (identifier: 07410021).

Safety Data Sheets
Safety data sheet provided as PDF for materials associated with this product.

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor, plastic box type, 7.5 MFD 370V (item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Standard Features

• Metric mounting threads and metric drive shaft dimensions
• Totally enclosed, IP-20 rating
• Fan cooled for higher continuous output
• Class B insulation system operated within Class A limits to extend winding and lubricant life
• Aluminum center ring and endshields for improved thermal dissipation and reduced weight
• Unvented gear housing
• Industrial lip-type seals on motor and output shafts
• Bronze sleeve bearings on output shaft, oiled by felt wicks and reservoir for low noise
• Permanently lubricated gearing using oil for long service life
• Bronze worm gear for high shock-load capability
• Hardened and ground worm for strength and durability

Technical Specifications

• Series: Metric 34R-5F Series AC Right Angle Gearmotor
• Model: 1469
• Speed (rpm): 23
• Rated Torque: 8.1 Nm (72 lb·in)
• Power: 50 W (1/15 HP)
• Voltage: 230 V AC
• Frequency: 50 Hz
• Phases: 1
• Current: 0.50 A
• Gear Ratio: 60
• Radial Load: 220 N (50 lbs)
• Length XH: 232 mm (9.15 in)
• Weight: 5.6 kg (12.3 lbs)
• Connection Diagram: 07410021
• Capacitor Part Number: 49401154
• Product Type: 34R4BFCI-5F
• HP Decimal: 0.0666
