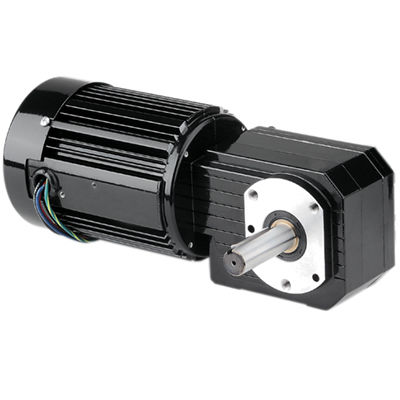

AC gear-motor Model 1262

single-phasewormhelical gear

Overview
Model 1262 Metric 42R-GB Series AC Right Angle Gearmotor by Bodine Electric. Compact right-angle gearmotor designed for metric mounting and metric drive shaft dimensions. Intended for single-phase AC operation with integral gearing and permanently lubricated gearhousing.

Specifications (table)
Speed (rpm): 12
Rated Torque (Nm): 33
Rated Torque (lb-in): 290
Power (Watts): 100
Power (HP): 1/7.5
Volts: 230
Hz: 50
Phases: 1
Amps: 0.78
Gear Ratio: 120
Radial Load (N): 900
Radial Load (lbs): 200
Length XH (mm): 294
Length XH (inch): 11.57
Weight (kg): 8
Weight (lbs): 17.5
Connection Diagram: 07410021
Capacitor Part Number: 49401154
Product Type: 42R5BFCI-GB
HPDecimal: 0.1333

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed IP-20 rating.
• Fan cooled for high output power.
• Class "B" insulation system operated within Class "A" limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing oil for long life.
• Hardened helical output gearing for quietness and high output torque.
• Bronze worm gear for high shock load capability.
• Hardened and ground worm gear for strength and long life.

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Capacitor; plastic box type; 7.5MFD 370V [Item 49401154]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

Available Documents

• CAD Drawings: PDF, DWG, STEP (product-specific CAD resources available)
• Wiring Diagram: PDF (connection diagram reference 07410021)
• Safety Data Sheets: PDF (related SDS available)

Caractéristiques / spécifications techniques

• Model: 1262
• Series: Metric 42R-GB
• Speed: 12 rpm
• Rated Torque: 33 Nm (290 lb-in)
• Power: 100 W (0.1333 HP / 1/7.5 HP)
• Voltage: 230 V, 50 Hz, Single phase
• Current: 0.78 A
• Gear Ratio: 120
• Radial Load Capacity: 900 N (200 lbs)
• Length XH: 294 mm (11.57 in)
• Weight: 8 kg (17.5 lbs)
• Connection Diagram reference: 07410021
• Capacitor part number: 49401154
• Product Type: 42R5BFCI-GB
