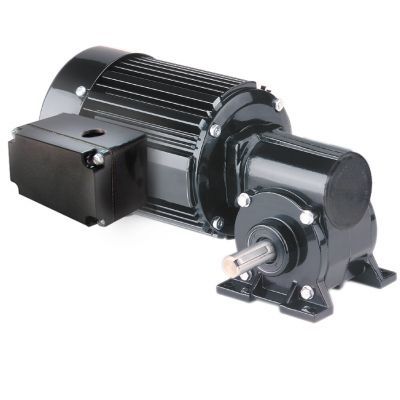

AC gear-motor Model 1677

single-phasewormright angle

Product
AC right-angle gearmotor Model 1677 from the Metric 42R-5N series. Designed for metric mounting and metric drive shaft dimensions. Single-phase 230 V input, 20:1 gear ratio, rated torque 9.0 Nm at 65 rpm. Intended for industrial applications requiring compact right-angle power transmission.

Key specifications

• Speed (rpm): 65
• Rated Torque (Nm): 9.0
• Rated Torque (lb-in): 80
• Power (Watts): 100
• Power (HP): 1/7.5
• Volts: 230
• Hz: 50
• Phases: 1
• Amps: 0.83
• Gear Ratio: 20
• Radial Load (N): 800
• Radial Load (lbs): 180
• Length XH (mm): 260
• Length XH (inch): 10.25
• Weight (kg): 7.3
• Weight (lbs): 16.3
• Connection Diagram: 07410021
• Capacitor Part Number: 49401154
• Product Type: 42R5BFCI-5N
• HPDecimal: 0.1333

CAD Drawings / Available Files

• INFm0334B (PDF)
• INFm0334B (DWG)
• INFm0334B (STEP)

Wiring Diagram

• Wiring diagram (07410021)

Safety Data Sheets

• ExxonMobil material safety data sheet (associated with model 1677)

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 0984]
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors [model 1984]
• Capacitor; plastic box type; 7.5MFD 370V [Item 49401154]
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors [model 0986]

Standard Features

• Metric mounting threads and metric drive shaft dimensions
• Totally enclosed IP-20 rating
• Fan cooled for high output power
• Class B insulation system operated within Class A limits to prolong winding and lubricant life
• Aluminum center ring and endshields for high thermal efficiency and light weight
• Unvented gearhousing
• Industrial lip type seals on motor and output shafts
• Needle bearings throughout for increased radial load capacity and long life
• Permanently lubricated gearing utilizing oil for long life
• Bronze worm gear for high shock load capability
• Hardened and ground worm gear for strength and long life

Technical specifications

• Speed (rpm): 65
• Rated Torque (Nm): 9.0
• Rated Torque (lb-in): 80
• Power (Watts): 100
• Power (HP): 1/7.5
• Volts: 230
• Hz: 50
• Phases: 1
• Amps: 0.83
• Gear Ratio: 20
• Radial Load (N): 800
• Radial Load (lbs): 180
• Length XH (mm): 260
• Length XH (inch): 10.25
• Weight (kg): 7.3
• Weight (lbs): 16.3
• Connection Diagram: 07410021
• Capacitor Part Number: 49401154
• Product Type: 42R5BFCI-5N
• HPDecimal: 0.1333
