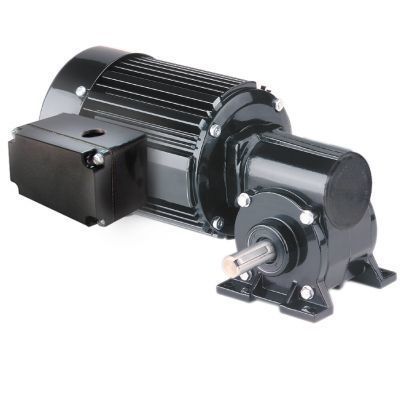

AC gear-motor Model 1623

single-phasewormright angle

Product
Metric 42R-5F Series AC Right Angle Gearmotor — Model 1623

Specifications
Speed (rpm) : 140
Rated Torque (Nm) : 3.6
Rated Torque (lb-in) : 32
Power (Watts) : 83
Power (HP) : 1/9
Volts : 230
Hz : 50
Phases : 1
Amps : .63
Gear Ratio : 10
Radial Load (N) : 45
Radial Load (lbs) : 10
Length XH (mm) : 246
Length XH (inch) : 9.69
Weight (kg) : 6.4
Weight (lbs) : 14.3
Connection Diagram : 07410021
Capacitor Part Number : 49401154
Product Type : 42R4BFCI-5F
HPDecimal : 0.1111

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed IP-20 rating.
• Fan cooled for high output power.
• Class "B" insulation system operated within Class "A" limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Bronze sleeve bearings on output shaft oiled by felt wicks and reservoir for quietness.
• Permanently lubricated gearing utilizing oil for long life.
• Bronze worm gear for high shock load capability.
• Hardened and ground worm gear for strength and long life.

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Caractéristiques / spécifications techniques

• Speed (rpm) : 140
• Rated Torque (Nm) : 3.6
• Rated Torque (lb-in) : 32
• Power (Watts) : 83
• Power (HP) : 1/9
• Volts : 230
• Hz : 50
• Phases : 1
• Amps : .63
• Gear Ratio : 10
• Radial Load (N) : 45
• Radial Load (lbs) : 10
• Length XH (mm) : 246
• Length XH (inch) : 9.69
• Weight (kg) : 6.4
• Weight (lbs) : 14.3
• Connection Diagram : 07410021
• Capacitor Part Number : 49401154
• Product Type : 42R4BFCI-5F
• HPDecimal : 0.1111
