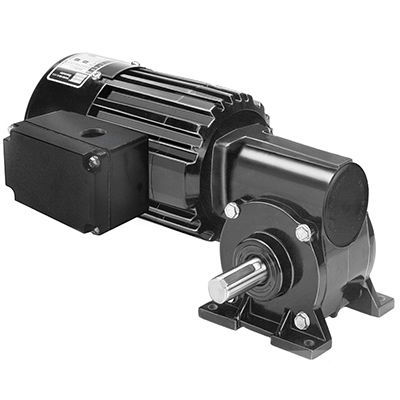

AC gear-motor Model 1468

single-phasewormright angle

Product overview
Model 1468, Metric 34R-5F series AC right-angle gearmotor designed for low-speed, high-torque industrial applications. Single-phase 230 V unit delivering 35 rpm and 6.8 Nm rated torque; compact right-angle output for space-constrained installations.

Key specifications

• Model: 1468
• Series: Metric 34R-5F
• Speed: 35 rpm
• Rated torque: 6.8 Nm (60 lb-in)
• Power: 50 W (0.0666 HP)
• Voltage / Frequency: 230 V AC / 50 Hz
• Phase: Single-phase (1)
• Current: 0.50 A
• Gear ratio: 40
• Radial load capacity: 220 N (50 lbs)
• Length XH: 232 mm (9.15 in)
• Weight: 5.6 kg (12.3 lbs)

Available drawings and documents
CAD drawings in PDF, DWG and STEP formats. Wiring diagram (connection diagram ref: 07410021) in PDF. Safety data sheets available for relevant materials.

Standard features

• Metric mounting threads and metric drive shaft dimensions
• Totally enclosed, IP-20
• Fan cooled for higher output
• Class B insulation operated within Class A limits to extend winding and lubricant life
• Aluminum center ring and endshields for thermal efficiency and reduced weight
• Unvented gearhousing
• Industrial lip-type seals on motor and output shafts
• Bronze sleeve bearings on output shaft, oiled by felt wicks and reservoir for quiet operation
• Permanently lubricated gearing using oil for long life
• Bronze worm gear for high shock load capability
• Hardened and ground worm gear for strength and long life

Optional accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor, plastic box type, 7.5 MFD 370 V (item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Technical specifications

• Product type code: 34R4BFCI-5F
• Speed: 35 rpm
• Rated torque: 6.8 Nm (60 lb-in)
• Power: 50 W (0.0666 HP)
• Voltage: 230 V AC
• Frequency: 50 Hz
• Phases: Single-phase (1)
• Current: 0.50 A
• Gear ratio: 40
• Radial load capacity: 220 N (50 lbs)
• Length XH: 232 mm (9.15 in)
• Weight: 5.6 kg (12.3 lbs)
• Connection diagram reference: 07410021
• Capacitor part number: 49401154
