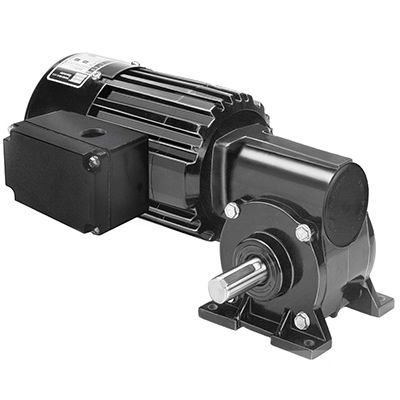

AC gear-motor Model 1466

single-phasewormright angle

Product
Model 1466 is a Metric 34R-5F series AC right-angle gearmotor designed for compact industrial drive applications. It is a single-phase 230 V, 50 Hz unit delivering 50 W at a 20:1 gear ratio and nominal speed of 70 rpm. Product Type: 34R4BFCI-5F. Capacitor Part No.: 49401154. Connection Diagram No.: 07410021.

Specifications

• Speed (rpm): 70
• Rated Torque (Nm): 4.4
• Rated Torque (lb-in): 39
• Power (Watts): 50
• Power (HP): 1/15
• HPDecimal: 0.0666
• Voltage/Frequency: 230 V, 50 Hz, Single phase
• Current (A): 0.50
• Gear Ratio: 20
• Radial Load: 220 N (50 lbs)
• Length XH: 232 mm (9.15 in)
• Weight: 5.6 kg (12.3 lbs)

Standard Features

• Metric mounting threads and metric drive shaft dimensions
• Totally enclosed, IP-20 rating
• Fan-cooled motor for consistent output
• Class B insulation operated within Class A limits to extend winding and lubricant life
• Aluminum center ring and endshields for thermal efficiency and reduced weight
• Unvented gearhousing
• Industrial lip-type seals on motor and output shafts
• Bronze sleeve bearings on output shaft oiled by felt wicks and reservoir for quiet operation
• Permanently lubricated gearing using oil for long life
• Bronze worm gear for high shock-load capability
• Hardened and ground worm gear for strength and durability

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor, plastic box type, 7.5 MFD 370 V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Technical data

• Connection Diagram No.: 07410021
• Capacitor Part No.: 49401154
• Product Type: 34R4BFCI-5F
• Speed: 70 rpm
• Rated Torque: 4.4 Nm (39 lb-in)
• Power: 50 W (1/15 HP)
• Current: 0.50 A
• Gear Ratio: 20
• Radial Load Capacity: 220 N (50 lbs)
• Length XH: 232 mm (9.15 in)
• Weight: 5.6 kg (12.3 lbs)
