AC gear-motor Model 1264

single-phasewormhelical gear

Product

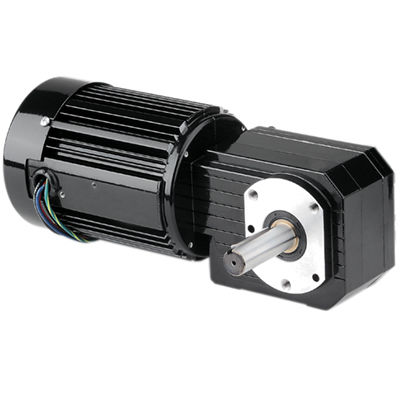

Model 1264 from the Metric 42R-GB Series AC right-angle gearmotor family. Single-phase AC right-angle gearmotor with metric mounting and metric drive-shaft dimensions, designed for compact industrial right-angle power transmission applications.

Specifications
Speed (rpm): 7.4
Rated Torque (Nm): 42
Rated Torque (lb-in): 375
Power (Watts): 100
Power (HP): 1/7.5
Volts: 230
Hz: 50
Phases: 1
Amps: 0.78
Gear Ratio: 190
Radial Load (N): 900
Radial Load (lbs): 200
Length XH (mm): 294
Length XH (inch): 11.57
Weight (kg): 8
Weight (lbs): 17.5
Connection Diagram: 07410021
Capacitor Part Number: 49401154
Product Type: 42R5BFCI-GB
HPDecimal: 0.1333

Standard Features

• Metric mounting threads and metric drive-shaft dimensions.
• Totally enclosed IP-20 rating.
• Fan cooled for high output power.
• Class B insulation system operated within Class A limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip-type seals on motor and output shafts.
• Bearings throughout for increased radial load capacity and long life.
• Permanently lubricated gearing utilizing oil for long life.
• Hardened helical output gearing for quietness and high output torque.
• Bronze worm gear for high shock load capability.
• Hardened and ground worm gear for strength and long life.

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984).
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984).
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154).
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986).

CAD & Wiring
CAD drawings available in multiple formats (PDF, DWG, STEP). Wiring diagram available (connection diagram reference 07410021).

Technical Specifications

• Series: Metric 42R-GB Series AC Right Angle Gearmotor.
• Model: Model 1264.
• Speed: 7.4 rpm.
• Rated Torque: 42 Nm (375 lb-in).
• Power: 100 W (1/7.5 HP; HPDecimal 0.1333).
• Voltage: 230 V, 50 Hz, Single phase.
• Current: 0.78 A.
• Gear Ratio: 190.
• Radial Load Capacity: 900 N (200 lbs).
• Length XH: 294 mm (11.57 in).
• Weight: 8 kg (17.5 lbs).
• Connection Diagram Reference: 07410021.
• Capacitor Part Number: 49401154.
• Product Type: 42R5BFCI-GB.
