AC gear-motor Model 1488

single-phasewormright angle

Product Overview

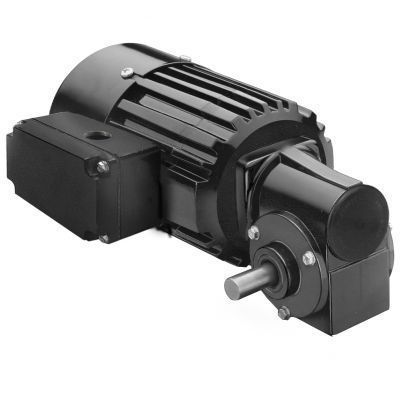

Metric 34R-3F Series AC right-angle gearmotor, Model 1488. Compact right-angle gearmotor designed for AC applications with metric mounting and metric drive shaft dimensions.

Specifications
Speed (rpm): 140
Rated Torque (Nm): 2.1
Rated Torque (lb-in): 19
Power (Watts): 50
Power (HP): 1/15
Volts: 230
Hz: 50
Phases: 1
Amps: 0.50
Gear Ratio: 10
Radial Load (N): 22
Radial Load (lbs): 5
Length XH (mm): 221
Length XH (inch): 8.69
Weight (kg): 4.5
Weight (lbs): 10.1
Connection Diagram: 07410021
Capacitor Part Number: 49401068
Product Type: 34R4BFCI-3F
HPDecimal: 0.0667

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Die cast terminal box with terminal block installed. IP-44.
• Fan cooled for high output power.
• Class B insulation system operated within Class A limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Industrial lip type seals on motor and output shafts.
• Bronze sleeve bearings on output shaft oiled by felt wicks and reservoir for quiet operation.
• Permanently lubricated gearing utilizing semi-fluid grease for long life.
• Bronze worm gear for high shock load capability.
• Hardened and ground worm gear for strength and long life.

Available Drawings and Documents

• CAD Drawings: PDF, DWG, STEP (available for download on product page).
• Wiring diagram (Connection diagram number: 07410021).
• Safety Data Sheet (industrial oil safety sheet listed).

Optional Accessories

• Base plate mounting kit for 3F gearmotors (model 0967).
• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984).
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984).
• Capacitor; plastic box type; 5.0 MFD / 400V (Item 49401068).
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986).

Technical specifications

• Model: Model 1488
• Series: Metric 34R-3F
• Speed: 140 rpm
• Rated Torque: 2.1 Nm (19 lb-in)
• Power: 50 W (1/15 HP, HPDecimal 0.0667)
• Voltage/Frequency: 230 V, 50 Hz, single phase
• Current: 0.50 A
• Gear Ratio: 10
• Radial Load Capacity: 22 N (5 lbs)
• Length XH: 221 mm (8.69 in)
• Weight: 4.5 kg (10.1 lbs)
• Connection Diagram ref: 07410021
• Capacitor Part Number: 49401068
• Product Type Code: 34R4BFCI-3F
