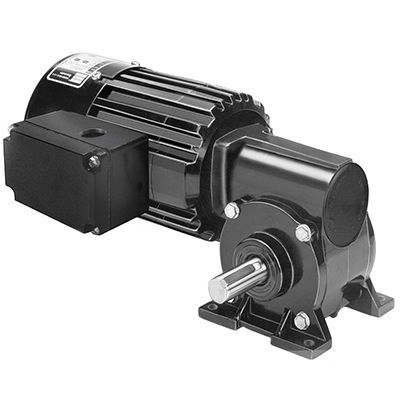

AC gear-motor Model 1465

single-phasewormright angle

Product Overview
Model 1465 of the Metric 34R-5F Series is an AC right-angle gearmotor with metric mounting threads and metric drive shaft dimensions. The motor is totally enclosed with an IP-20 rating and is fan cooled for high output power. It employs a Class "B" insulation system operated within Class "A" limits. Construction features an aluminum center ring and endshields for thermal efficiency and reduced weight, an unvented gearhousing, industrial lip-type seals, bronze sleeve bearings on the output shaft lubricated by felt wicks and reservoir, permanently oil-lubricated gearing, a bronze worm for shock load capability, and a hardened and ground worm gear for extended life.

Specifications

• Speed (rpm) : 140
• Rated Torque (Nm) : 2.4
• Rated Torque (lb-in) : 21
• Power (Watts) : 50
• Power (HP) : 1/15
• Volts : 230
• Hz : 50
• Phases : 1
• Amps : 0.50
• Gear Ratio : 10
• Radial Load (N) : 132
• Radial Load (lbs) : 30
• Length XH (mm) : 232
• Length XH (inch) : 9.15
• Weight (kg) : 5.6
• Weight (lbs) : 12.3
• Connection Diagram : 07410021
• Capacitor Part Number : 49401154
• Product Type : 34R4BFCI-5F
• HPDecimal : 0.0666

Standard Features

• Metric mounting threads and metric drive shaft dimensions.
• Totally enclosed IP-20 rating.
• Fan cooled for high output power.
• Class "B" insulation system operated within Class "A" limits to prolong winding and lubricant life.
• Aluminum center ring and endshields for high thermal efficiency and light weight.
• Unvented gearhousing.
• Industrial lip type seals on motor and output shafts.
• Bronze sleeve bearings on output shaft oiled by felt wicks and reservoir for quietness.
• Permanently lubricated gearing utilizing oil for long life.
• Bronze worm gear for high shock load capability.
• Hardened and ground worm gear for strength and long life.

Optional Accessories

• Die cast terminal box kit for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 0984)
• Die cast metric terminal box kit with terminal block for 33A, 34R, 42A, 42R, and 48R motors and gearmotors (model 1984)
• Capacitor; plastic box type; 7.5MFD 370V (Item 49401154)
• Large die cast terminal box kit for 34R, 42R, 48R, 42R-FX, 33A, 42A stock motors and gearmotors (model 0986)

Available Documents (titles only)

• CAD Drawings (PDF, DWG, STEP variants referenced)
• Wiring Diagram (reference 07410021)
• Safety Data Sheets (exxonmobile material safety data sheet referenced)

Technical specifications

• Model: 1465
• Series: Metric 34R-5F
• Speed: 140 rpm
• Rated torque: 2.4 Nm / 21 lb-in
• Power: 50 W (1/15 HP; HPDecimal 0.0666)
• Voltage: 230 V, 50 Hz, single phase
• Current: 0.50 A
• Gear ratio: 10
• Radial load capacity: 132 N (30 lbs)
• Length XH: 232 mm / 9.15 in
• Weight: 5.6 kg / 12.3 lbs
• Connection diagram reference: 07410021
• Capacitor part number: 49401154
• Product type code: 34R4BFCI-5F
