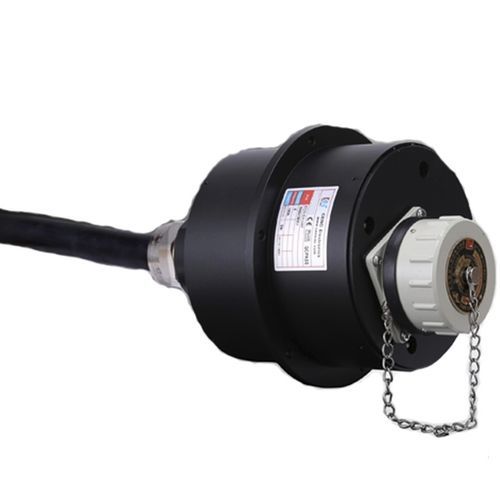

Industrial slip ring ECN-EX-04PIP65conductiveexplosion-proof
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Other characteristics
- IP65, conductive, explosion-proof
- Voltage
660 V
- Primary current
100 A
- Rotational speed
Max.: 50 rpm
(314 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
4 unit
Description
Explosion-proof conductive slip ring is a kind of slip ring with high safety and reliability, suitable working in explosive environment, such as oil platform, explosive material packaging equipment, agricultural products processing equipment, coal mine, spraying and other dangerous places. It can meet both explosive gas environment and explosive dust environment and the protection grade is IP65 IP66 or IP68.
Dielectric strength - ≥2500VAC@50Hz
Isolation resistance - ≥500MΩ@100VDC
Resistance fluctuation - 10mΩ
Contact material - Copper graphite
Anti-explosion grade - Exd II BT4 Gb IP65
