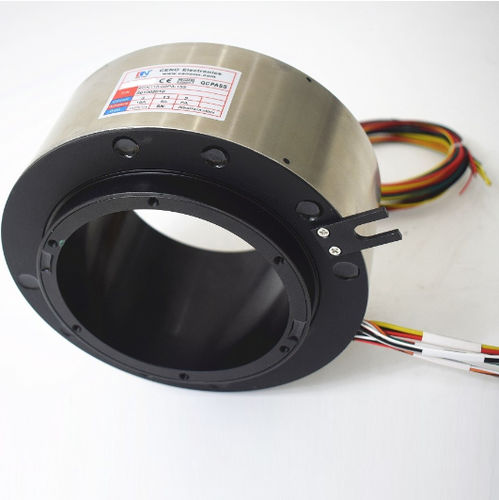

Hollow-shaft slip ring ECN115-03P3-15S

for marine applicationsfor cranesfor offshore applications

ECN115-03P3-15S This is a Large inner diameter slip ring that with ID 115mm.CENO Electronics hollow shaft slip ring hole size from 3mm to 5000mm are optional.This series product could integrate various signal,such as USB,Ethernet ,CANBUS,Encoder,HDMI and etc. Typical application including Radar system,Marine industrial equipment,Medical equipment. Features ~No package loss,no cross talk,low loss ~Low friction, long life,low torque, smooth rotation ~Anti-rotation tab for fixing stator side ,easy to install Applications ~Robot arm ~Industrial robot ~Motion simulator ~Automation equipment Optional ~Through hole size ~Current rating ~Signal type ~IP protection grade Specification Rings - 3*15A,13*5A,2*6A Voltage - 0~220VAC/VDC Electrical noise - ≤30mΩ(50rpm) Dielectric strength - ≥500V@50Hz Insulation resistance - ≥500MΩ@500VDC Operating speed - 0-60 rpm Contact material - Precious metal Housing material - Aluminium alloy & stainless steel IP protection grade - IP51 Through hole size - 115 mm
