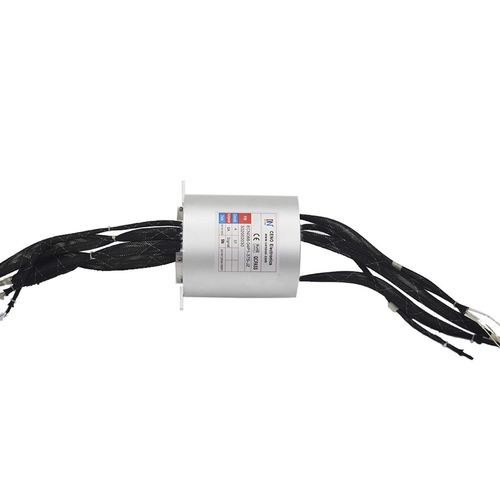

Low-temperature slip ring ECN088-04P1-37S-JZfiber optichydraulicpneumatic

low-temperature slip ring
low-temperature slip ring
Add to favorites
Compare this product
indicative price

Characteristics

Type
fiber optic, hydraulic, pneumatic
Construction
hollow-shaft
Applications
for radar antennas, for research and development
Material
stainless steel
Other characteristics
IP65, for harsh environments, low-temperature
Rotational speed

Min.: 0 rpm (0 rad.min-1)

Max.: 300 rpm (1,885 rad.min-1)

Current

5 A

Voltage

32 V

Number of channels

41 unit

Description

This is low temperature hollow shaft slip ring, it can work on special environment because of its special features,low temperature for -55℃ and working height at 55000ft. The internal structure has been specially improved and optimized for high altitude and low temperature environment to ensure its reliability in harsh environment. Features u Anti-Low temperature u Able to work at high altitude u Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint Applications u Automation equipment u Food processing machinery u Military airborne u Special working condition
