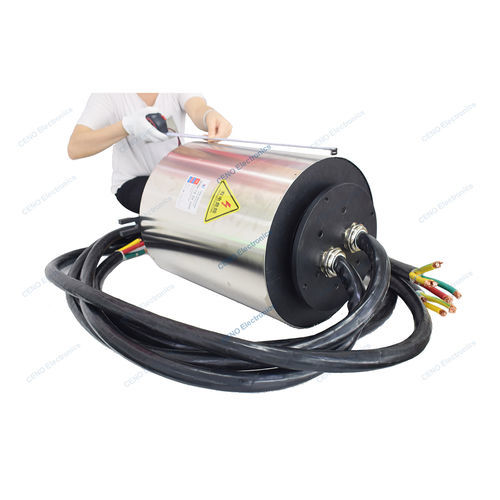

Slip ring for marine applications BHCN-C-08250-IP66

carbonaluminumcopper

Product Overview
BHCN-C-08250-IP66 is a high-current carbon brush slip ring designed for marine and heavy-duty industrial applications. It features a large external diameter (Ø410 mm) and IP66 protection for harsh weather and splash resistance. Also referred to as a center current collector or marine slip ring, it transmits 250 A per circuit (configurable to higher ratings depending on configuration) and uses binding-post connections for simplified wiring.

Specification
BHCN-C-08250-IP66 | Key specifications

Outline Drawing
Outline drawing is provided for installation, mounting and dimensional reference.

Technical specifications

• Model: BHCN-C-08250-IP66
• Current & Circuits: 8 circuits × 250 A
• Rating voltage: 0–480 VAC/VDC
• Dielectric strength: ≥1500 VAC @ 50 Hz
• Insulation resistance: ≥500 MΩ @ 500 VDC
• Contact resistance: 30 mΩ (measured at 50 rpm)
• Contact material: Copper graphite
• Housing material: Aluminum alloy
• Operating temperature range: -20 °C to +60 °C
• Operating humidity: 60 % RH
• Ingress protection: IP66
• Maximum recommended speed: 0–10 rpm
• Lead wire: Four-core (90 mm²), rotor length 3000 mm, stator length 3000 mm
• External diameter: Ø410 mm
• Mounting: Rotor — flange installation; Stator — anti-rotation tab
