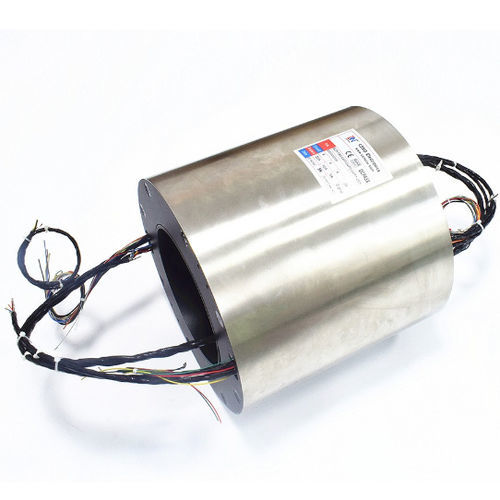

Through-hole slip ring ECN120-05P2-08S

stainless steelfiber brushmodular

The big through-hole slip ring produced by CENO, fully meets the 360-degree infinite rotation of power supply, control and digital signal transmission; the through-hole conductive slip ring uses advanced fiber brush technology, which is maintenance-free and requires no lubricant; multi-point contact per channel, low contact pressure and wear, low noise, long service life; standardized, modular design, complete product specifications, and can customize products for customers. Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥500V@50Hz(power) Isolation resistance - 500MΩ@500VDC(power) 100MΩ@100VDC(signal) Contact material - precious metals Operating temperature - -20~+60℃
