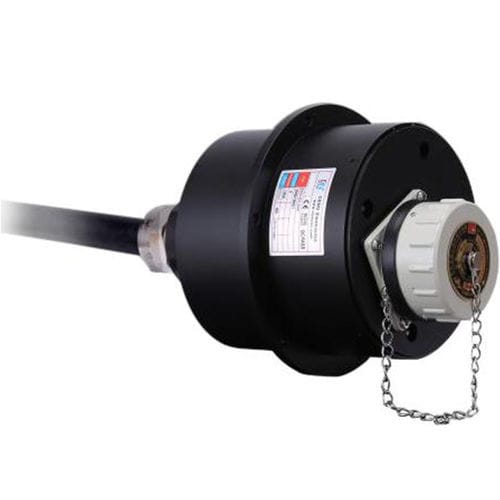

Electric slip ring ECN-EX-03P-06Ssolid-shaftIP65custom-made
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- solid-shaft
- Other characteristics
- IP65, custom-made, explosion-proof
- Voltage
24 V, 660 V
- Primary current
100 A
- Rotational speed
Max.: 50 rpm
(314 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
9 unit
Description
Explosion-proof slip-ring is an electric slip-ring that works in explosive environment. CENO has strong ability to produce all kinds of slip-rings with explosion-proof grade. If you have any interest, please contact us online or via email. we can custom to make various slip ring as requested.
Dielectric strength -
≥2500VAC@50Hz(power)
≥1000VAC@50Hz(signal)
Isolation resistance -
≥500MΩ@100VDC(power)
≥300MΩ@100VDC(signal)
Resistance fluctuation -
10mΩ(power)
5mΩ(signal)
Contact material - Copper graphite
Anti-explosion grade - Exd II BT4 Gb IP65
