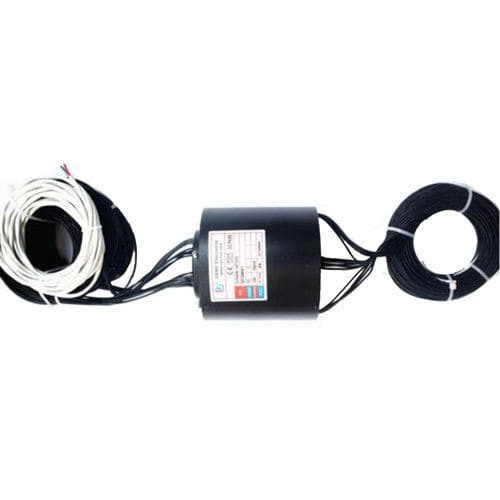

Through-bore slip ring ECN038-15P-02SindustrialIP54high-speed
Add to favorites
Compare this product
Characteristics
- Construction
- through-bore
- Applications
- industrial
- Other characteristics
- IP54, high-speed
- Voltage
380 V
- Primary current
10 A
- Rotational speed
Max.: 3,000 rpm
(18,850 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
16 unit
- Internal diameter
38.1 mm
(1.5 in)
Description
High speed slip ring 's rotating speed at lease is 1000RPM. It mainly be used in high speed train, nondestructive testing equipment, eddy current testing equipment and so on. At present, one kind of this high speed slip ring lifespan is more than 100 million RPM at the speed of 3000RPM, with 15 circuit 10A current through hole in 38mm.
Isolation resistance -
500MΩ@500VDC(Power)
100MΩ@300VDC(Signal)
Dielectric strength -
≥1000VAC@50Hz(Power)
≥300VAC@50Hz(Signal)
Resistance fluctuation - ≤70mΩ (with 50rmb running)
Working temperature - -20℃~+60℃
Contact material - Precious metals
