Multi-channel slip ring ACN-08P-102S
capsulefor rotary tablesfor medical devices

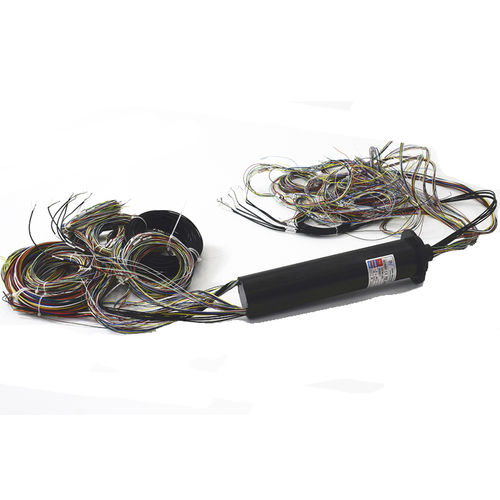

Multi-channel slip ring - ACN-08P-102S - CENO Electronics technology Co., Ltd - capsule / for rotary tables / for medical devices
Multi-channel slip ring - ACN-08P-102S - CENO Electronics technology Co., Ltd - capsule / for rotary tables / for medical devices
Multi-channel slip ring - ACN-08P-102S - CENO Electronics technology Co., Ltd - capsule / for rotary tables / for medical devices - image - 2
Multi-channel slip ring - ACN-08P-102S - CENO Electronics technology Co., Ltd - capsule / for rotary tables / for medical devices - image - 3
Add to favorites
Compare this product
Go to the CENO Electronics technology Co., Ltd website for more information

Characteristics

Construction
capsule
Applications
for rotary tables, for medical devices
Material
aluminum alloy
Other characteristics
IP54, with gold contacts, low-torque, multi-channel
Voltage

24 V, 220 V

Primary current

8 A

Rotational speed

Max.: 300 rpm
(1,885 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Number of channels

110 unit

External diameter

61 mm
(2.4 in)

Description

Our newest design capsule multi channels rotary joint assembly, whole length is 286.9mm. It is used for lithium battery equipment, there are 110 rings transferring ordinary signal, ultrasonic signal as well as current. Low electrical noise, low torque, smooth rotation, low contact wear rates. Electrical noise - ≤70mΩ(50rpm) Dielectric strength - ≥500V@50Hz Insolation resistance - 100MΩ@100VDC Contact material - gold to gold Operating temperature - -20~+60℃
