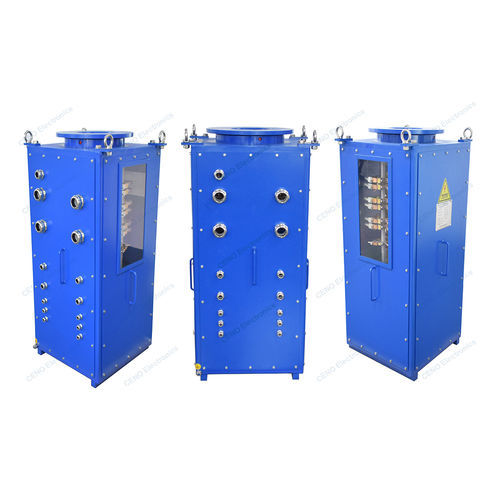

Electric slip ring BHCN-C-07P-54S-38K_23022

graphitecopperwith gold contacts

Overview
BHCN-C-07P-54S-38K_23022 is CENO new customized carbon brush slip ring. Carbon brush is made of graphite or carbon-based composite materials, it is fixed at the stationary end and keeps in contact with the slip ring through a spring or elastic device. When the slip ring rotates with the shaft, the carbon brush continuously slides in contact with the slip ring surface under the pressure of the spring, forming a conductive path. The current, voltage and circuits are optional.

Specification
Model: BHCN-C-07P-54S-38K_23022
Current & Circuits: 3 circuits * 800A; 1 circuit * PE; 3 circuits * 60A
Rating Voltage: 0 ~ 500 VAC/VDC
Dielectric strength: ≥2500VAC@50Hz
Isolation resistance: ≥500MΩ@500VDC
Contact resistance: ≤10mΩ (50rpm)
Contact material: Copper graphite
Working temperature: -20°C~+60°C
Working humidity: 100 %RH
IP protection grade: IP54

Current & Circuits (alternative configuration): 3 circuits * Heater; 36 circuits * Signal; 15 circuits * Signal
Rating Voltage (alternative): 220 VAC / 24VDC
Dielectric strength (alternative): ≥1000VAC@50Hz
Isolation resistance (alternative): ≥300MΩ@500VDC
Contact resistance (alternative): ≤10mΩ (50rpm)
Contact material (alternative): Precious Metal; Gold-plated
Working speed: 0~15rpm
Rotation way: Brush rotation, the ring state
Installation: Rotor side: Flange installation; Stator side: Mounting holes
Housing material: Customized
Heater model: 220V, 220W

Outline drawing
BHCN-C-07P-54S-38K_23022 drawing rev (image available)

Characteristics / technical specifications

• Model: BHCN-C-07P-54S-38K_23022
• Current & Circuits: 3x800A; 1xPE; 3x60A (alternative: 3xHeater; 36xSignal; 15xSignal)
• Rating Voltage: 0~500 VAC/VDC (alternative: 220 VAC / 24VDC)
• Dielectric strength: ≥2500VAC@50Hz (alternative: ≥1000VAC@50Hz)
• Isolation resistance: ≥500MΩ@500VDC (alternative: ≥300MΩ@500VDC)
• Contact resistance: ≤10mΩ (50rpm)
• Contact material: Copper graphite (alternative: Precious Metal; Gold-plated)
• Working temperature: -20°C~+60°C
• Working humidity: 100 %RH
• IP protection grade: IP54
• Working speed: 0~15rpm
• Rotation way: Brush rotation, the ring state
• Installation: Rotor side flange; Stator side mounting holes
• Housing material: Customized
• Heater model: 220V, 220W
