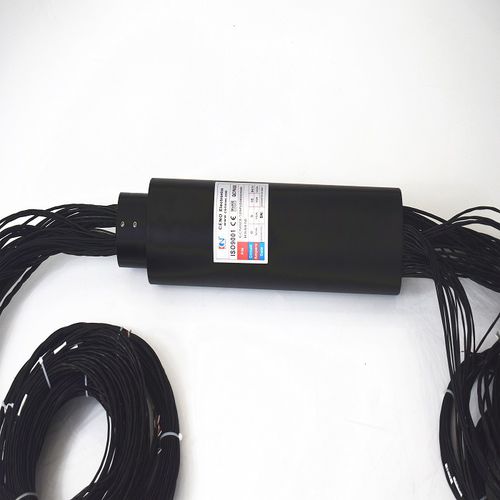

This is a multi- channel through hole slip ring with 125 lines ,through hole slip rings are widely used in military equipment, industrial automation equipment,the inner hole can be from 5mm to 1000mm, and the wires can be up to 200mm,transfer power and different signal, including very high speed data.Various signal such as Ethernet,USB,HDMI,SDI,Canbus,profibus and power are capable to be integrated into one slip ring.
Features
Multi- channel power lines
Transmit analog and digital signal
Long service life, maintenance-free
Easy to install
Applications
Industrial automation equipment
Medical equipment
Wind power equipment
Test equipment
Optional
Through hole size
Current rating
Signal type
IP protection grade
Circuits number
Circuits - 6*30A,5*16A,16*10A,84*1A,14*2A
Voltage - 400VAC/50VDC/220VAC
Wire length - 2000mm on both sides
Dielectric strength - ≥1000V@50Hz
≥300V@50Hz(Signal)
Insulation resistance - ≥500MΩ@500VDC
≥100MΩ@300VDC(Signal)
Operating speed - 0-20 rpm
Contact material - Gold to gold
Housing material - Aluminium alloy
IP protection grade - IP54
Through hole size - 23 mm
