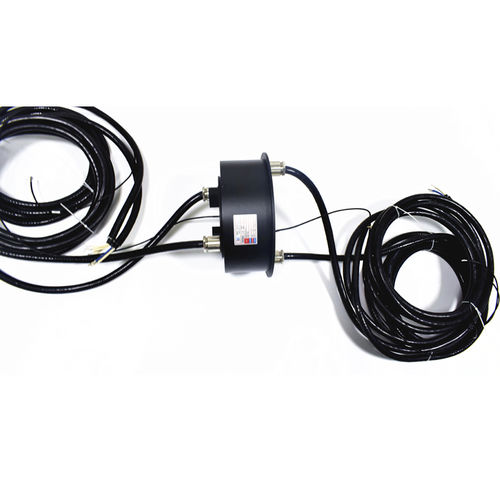

Through-bore slip ring ECN100-0325-0510industrialmetalstandard
Add to favorites
Compare this product
Characteristics
- Construction
- through-bore
- Applications
- industrial
- Material
- metal
- Other characteristics
- standard, IP54, fiber brush, maintenance-free
- Voltage
380 V
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 300 rpm
(1,885 rad.min-1)- Internal diameter
100 mm
(3.94 in)
Description
CENO company standard series through bore slip rings are available in various bore sizes and circuit configurations. These slip rings are maintenance free and utilize fiber brush technology to insure reliable power and signal transfer capabilities as well as long operating lifetimes. we have many good designed and popular products, if you do not see a slip ring to match your requirements, please contact us for assistance.
Electrical noise
≤70mΩ(50rpm)
Dielectric strength
≥1000V@50Hz
Isolation resistance
-
500MΩ@500VDC
Contact material
Precious metals
Operating temperature
-20~+60℃
