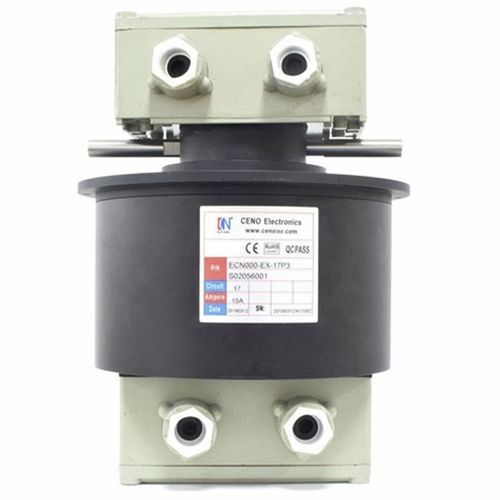

Industrial slip ring ECN000-EX-17P3IP65conductiveexplosion-proof
Add to favorites
Compare this product
Characteristics
- Applications
- industrial
- Other characteristics
- IP65, conductive, explosion-proof
- Voltage
380 V
- Primary current
5 A
- Rotational speed
Max.: 50 rpm
(314 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Number of channels
17 unit
Description
Explosion-proof slip ring is called as the explosion proof conductive slip ring, explosion proof collector ring,explosion-proof collecting ring or flame-proof slip ring, etc,. It is a kind of conductive slip ring with highly reliable security, under working the easy explosive environment such as petroleum, chemical/explosive dust environment.
Electrical noise - 70mΩ @(50rpm)
Dielectric strength - ≥1000VAC@50Hz
Isolation resistance - ≥500MΩ@100VDC
Working temperature - -20℃~+60℃
Working humidity - Below 60%RH
Contact material - Precious metal
