Side-mount electrical cabinet air conditioner Model 4215

compactindustrialdust-resistant

Overview

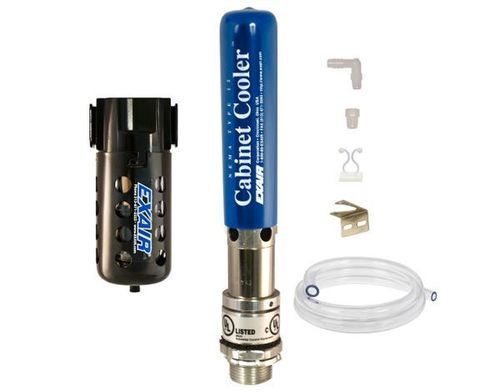

NEMA 12 (IP54) Cabinet Cooler® Systems for continuous operation provide dust- and oil-resistant cooling and positive purge for electronic control panels. Designed for industrial control environments, these systems use a vortex tube to generate cold air from compressed air with no moving parts. Continuous systems include a Cabinet Cooler, cold air distribution kit and a 5 μm automatic drain filter. All Cabinet Coolers are UL Listed and CE compliant.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Low cost, compact solution
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation
• Quick installation through standard electrical knockout
• Maintains NEMA 12 (IP54) enclosure integrity
• Stabilizes internal temperature and humidity
• No CFCs, no moving parts
• Reduces nuisance tripping and heat damage
• Eliminates external fans and filters

Systems Included
Continuous operation systems include: Cabinet Cooler, cold air distribution kit and 5 μm automatic drain filter. Thermostat-controlled systems add solenoid valve, thermostat and filter separator. ETC (Electronic Temperature Control) systems add digital control, LED readout and internal temperature feedback.

How It Works
Compressed air enters the vortex-tube powered Cabinet Cooler and separates into hot and cold streams. Hot air exhausts through the vortex tube; cold air is delivered into the enclosure via the cold air distribution kit. Positive internal pressure prevents ingress of outside air and contaminants.

Filtration & Cold Air Distribution
Systems include a 5 μm automatic drain water-and-dirt filter to protect electronics. If oil is present in the compressed air, install a coalescing (oil removal) filter. The cold air distribution kit contains flexible tubing, adhesive clips and fittings to direct airflow to circulation paths or specific hot spots.

ETC, Solenoid Valve & Thermostat
ETC (Electronic Temperature Control) offers precise temperature management with LED readout and thermocouple sensing. Thermostat-controlled systems use a solenoid valve and a thermostat (factory set at 95°F / 35°C) to limit compressed air consumption. Solenoid voltages available in multiple options. ETC units are RoHS and CE compliant.

Environmental & Mounting
NEMA 12 (IP54) systems are suitable for general industrial environments where liquids or corrosives are not present. Cabinet Coolers may be mounted on the top or side of the panel; side-mount kits are available for restricted space. (NEMA 4 and 4X units have specific mounting requirements.)

Models / Cooling Capacities
Model | Btu/hr. (Watts)
4204 | 275 (80)
4208 | 550 (162)
4215 | 1,000 (293)
4225 | 1,700 (498)
4230 | 2,000 (586)
4240 | 2,800 (821)
4250 | 3,400 (997)
4260 | 4,000 (1,171)
4270 | 4,800 (1,406)
4280 | 5,600 (1,641)

Performance (selected)
Model | Btu/hr. | Watts | Sound Level dBA
4204 | 275 | 80 | 59*
4208 | 550 | 162 | 67*
4215 | 1,000 | 293 | 73*
4225 | 1,700 | 498 | 74*
4230 | 2,000 | 586 | 74*
4240 | 2,800 | 821 | 78*
4250 | 3,400 | 997 | 75*
4260 | 4,000 | 1,171 | 77*
4270 | 4,800 | 1,406 | 77*
4280 | 5,600 | 1,641 | 79*
*With optional cold muffler installed. Cooling capacities measured at 100 PSIG (6.9 BAR) supply pressure.

Other Considerations

• Humidity: continuous-operation units stabilize relative humidity inside the enclosure at ~45% when enclosure is sealed
• Inlet air temperature: typical temperature drop ≈54°F (30°C) at 100 PSIG (6.9 BAR); higher inlet temps or lower pressure reduce capacity
• Filtration: 5 μm automatic drain included; coalescing filter recommended if oil present

Technical characteristics / Specifications

• Brand: EXAIR
• Series: NEMA 12 Cabinet Cooler® Systems
• Example SKU shown: P4208
• Product ID on page: 12583
• NEMA Rating: NEMA 12 (IP54) - dust and oil resistant
• Operation type: Continuous operation (models 4204–4280)
• Cooling capacity range: 275 to 5,600 Btu/hr (80 to 1,641 Watts)
• Typical cooling delta: ~54°F (30°C) at 100 PSIG (6.9 BAR)
• Included with continuous systems: Cabinet Cooler, cold air distribution kit, 5 μm automatic drain filter
• ETC: digital control, LED readout, Type J thermocouple options
• Filtration: 5 μm automatic drain; coalescing filter recommended if oil present
• Mounting: installs through standard electrical knockout (1-1/2 NPS); side-mount kits available (aluminum for NEMA 12)
• Approvals: UL Listed and CE compliant
• Materials: NEMA 12 units aluminum components; NEMA 4/4X stainless steel where specified
• Supply pressure for published capacities: 100 PSIG (6.9 BAR)
