Side-mount electrical cabinet air conditioner Model HT4730

compactindustrialcorrosion-resistant

Overview EXAIR Cabinet Cooler® Systems HT47 series provide NEMA 4 (IP66) rated cooling and purge for electrical enclosures in high ambient temperatures (125°F to 200°F / 52°C to 93°C). Available in multiple capacities, HT47 systems use a vortex tube to generate cold air from compressed air with no moving parts. Continuous-operation systems include the Cabinet Cooler, a cold air distribution kit and a 5 micron automatic drain filter; they incorporate a low-pressure relief valve for vortex and exhaust to preserve NEMA 4 integrity when idle.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housing cooling
• Electronic scales

Advantages

• Low installed cost and compact footprint
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation (73–85 dBA depending on model)
• Fast installation through standard electrical knockout
• Maintains NEMA 4 (IP66) enclosure integrity
• Stabilizes internal temperature and humidity
• No CFCs and no moving parts — maintenance free
• Reduces nuisance tripping and heat damage
• Eliminates need for room fans/filters and reduces contamination

Models (NEMA 4 High Temperature, Continuous Operation)
HT4715 | 1,000 Btu/hr (293 Watts)
HT4725 | 1,700 Btu/hr (498 Watts)
HT4730 | 2,000 Btu/hr (586 Watts)
HT4740 | 2,800 Btu/hr (821 Watts)
HT4750 | 3,400 Btu/hr (997 Watts)
HT4760 | 4,000 Btu/hr (1,171 Watts)
HT4770 | 4,800 Btu/hr (1,406 Watts)
HT4780 | 5,600 Btu/hr (1,641 Watts)

Performance (Cooling Capacity at 100 PSIG / 6.9 BAR supply pressure)
HT4715 | 1,000 Btu/hr | 293 Watts | 73 dBA
HT4725 | 1,700 Btu/hr | 498 Watts | 80 dBA
HT4730 | 2,000 Btu/hr | 586 Watts | 80 dBA
HT4740 | 2,800 Btu/hr | 821 Watts | 82 dBA
HT4750 | 3,400 Btu/hr | 997 Watts | 84 dBA
HT4760 | 4,000 Btu/hr | 1,171 Watts | 84 dBA
HT4770 | 4,800 Btu/hr | 1,406 Watts | 84 dBA
HT4780 | 5,600 Btu/hr | 1,641 Watts | 85 dBA

Filtration Systems include a 5 micron automatic drain water-and-dirt filter to protect electronics from moisture and particulate in the compressed air. If oil is present in the supply, add a coalescing (oil removal) filter.

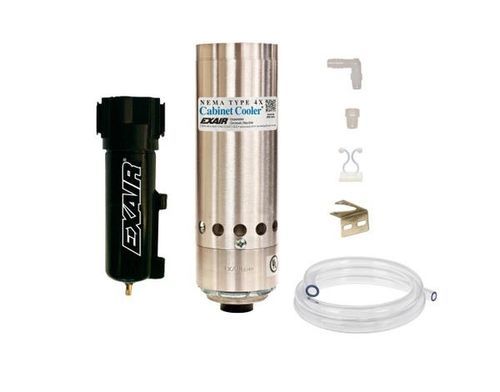

Cold Air Distribution Kit Kit contains flexible tubing, connectors and adhesive-backed clips to route cold air inside the cabinet or to targeted hot spots for uniform temperature control.

Inlet Air Temperature and Cooling Drop Typical temperature drop is 54°F (30°C) from supply air temperature at 100 PSIG (6.9 BAR). Higher inlet temperatures or lower supply pressure will reduce cooling capacity.

Mounting Cabinet Cooler mounts through a drilled hole or standard electrical knockout. NEMA 4 and 4X systems can be top-mounted or side-mounted using a Side Mount Kit while preserving the enclosure rating.

Solenoid Valve, Thermostat and ETC (Electronic Temperature Control) Continuous systems include cooler, distribution kit and filter. Thermostat-controlled variants add a solenoid valve and thermostat to limit compressed air use; thermostatic systems are UL/CSA approved in multiple voltages. The ETC digital controller offers precise setpoint control, display and solenoid activation (sold in systems or separately).

What is an EXAIR Cabinet Cooler® System? EXAIR Cabinet Coolers convert compressed air into clean, cold air using a vortex tube with no moving parts to deliver reliable, maintenance-free cooling and purge for electrical enclosures.

Technical Specifications

• Ambient operating temperature range: 125°F to 200°F (52°C to 93°C)
• Cooling capacities: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts)
• NEMA rating: NEMA 4 (IP66) dust-tight, oil-tight, splash resistant, indoor/outdoor capable
• Cooling capacity specified at 100 PSIG (6.9 BAR)
• Typical cold air temperature drop: 54°F (30°C) from supply at 100 PSIG
• Sound levels by model: 73–85 dBA
• Includes 5 micron automatic drain filter (systems include filter and distribution kit)
• Cold air distribution kit: tubing, adhesive clips and fittings included
• Construction: aluminum body with stainless steel vortex tube components for NEMA 4 systems
• No moving parts — maintenance free
• Mounting: installs through standard electrical knockout; Side Mount Kits available
• Certifications: UL Listed and CE compliant
• Available system types: continuous operation (4700 series), thermostat control (4800 series), ETC upgrade options and NHP variants
