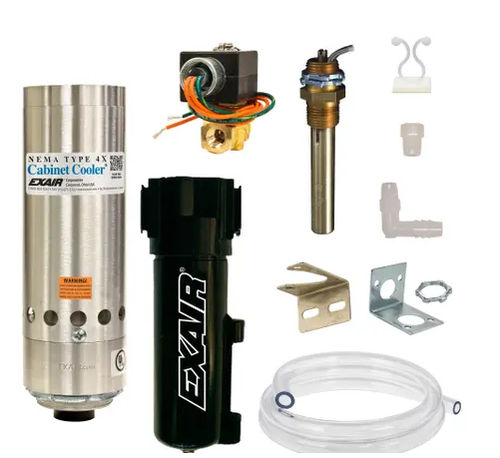

Side-mount electrical cabinet air conditioner Model NHP4840SS

compactindustrialoutdoor

Overview
A NEMA 4X Non‑Hazardous Purge Cabinet Cooler® System provides slight positive pressure inside enclosures to prevent ingress of dirt and dust through small openings. Thermostat control activates cooling only when internal temperatures approach set thresholds (factory default 95°F / 35°C), reducing compressed‑air consumption. EXAIR Cabinet Coolers use a vortex tube to generate cold air from compressed air with no moving parts and install in minutes through a standard electrical knockout. NEMA 4X (IP66) units are dust‑tight, oil‑tight, splash‑ and corrosion‑resistant for indoor/outdoor service. All units are UL Listed and CE compliant.

Applications

• Programmable logic controllers (PLCs) and CNC cabinets
• Line and motor control cabinets
• Relay and relay logic panels
• Modular control centers and MCCs
• CCTV and electronic instrumentation enclosures
• Laser housings and computer cabinets
• Electronic scales and sensitive process controls

Advantages

• Low cost, compact installation through standard knockout
• Corrosion‑resistant stainless construction for harsh environments
• Thermostat control minimizes compressed‑air use
• Cooling capacities from 275 to 5,600 Btu/hr (80–1,641 W)
• Quiet operation; optional cold muffler reduces sound
• No moving parts — minimal maintenance
• Maintains NEMA 4X (IP66) integrity and provides positive purge
• Eliminates need for fans and filters; prevents nuisance trips and circuit drift

Models - NEMA 4X (IP66) Non Hazardous Purge Cabinet Cooler Systems - Type 303 Stainless Steel 120V, Thermostat Control
Model | Btu/hr (Watts)
NHP4804SS | 275 (80)
NHP4808SS | 550 (162)
NHP4815SS | 1,000 (293)
NHP4825SS | 1,700 (498)
NHP4830SS | 2,000 (586)
NHP4840SS | 2,800 (821)
NHP4850SS | 3,400 (997)
NHP4860SS | 4,000 (1,171)
NHP4870SS | 4,800 (1,406)
NHP4880SS | 5,600 (1,641)

Models - NEMA 4X (IP66) Non Hazardous Purge Cabinet Cooler Systems - Type 316 Stainless Steel 120V, Thermostat Control
Model | Btu/hr (Watts)
NHP4804SS-316 | 275 (80)
NHP4808SS-316 | 550 (162)
NHP4815SS-316 | 1,000 (293)
NHP4825SS-316 | 1,700 (498)
NHP4830SS-316 | 2,000 (586)
NHP4840SS-316 | 2,800 (821)
NHP4850SS-316 | 3,400 (997)
NHP4860SS-316 | 4,000 (1,171)
NHP4870SS-316 | 4,800 (1,406)
NHP4880SS-316 | 5,600 (1,641)

Models - NEMA 4X (IP66) Non Hazardous Purge Cabinet Cooler Systems - Type 303 Stainless Steel 240V, Thermostat Control
Model | Btu/hr (Watts)
NHP4804SS-240 | 275 (80)
NHP4808SS-240 | 550 (162)
NHP4815SS-240 | 1,000 (283)
NHP4825SS-240 | 1,700 (498)
NHP4830SS-240 | 2,000 (586)
NHP4840SS-240 | 2,800 (821)
NHP4850SS-240 | 3,400 (997)
NHP4860SS-240 | 4,000 (1,171)
NHP4870SS-240 | 4,800 (1,406)
NHP4880SS-240 | 5,600 (1,641)

Models - NEMA 4X (IP66) Non Hazardous Purge Cabinet Cooler Systems - Type 316 Stainless Steel 240V, Thermostat Control
Model | Btu/hr (Watts)
NHP4804SS-316-240 | 275 (80)
NHP4808SS-316-240 | 550 (162)
NHP4815SS-316-240 | 1,000 (293)
NHP4825SS-316-240 | 1,700 (498)
NHP4830SS-316-240 | 2,000 (586)
NHP4840SS-316-240 | 2,800 (821)
NHP4850SS-316-240 | 3,400 (997)
NHP4860SS-316-240 | 4,000 (1,171)
NHP4870SS-316-240 | 4,800 (1,406)
NHP4880SS-316-240 | 5,600 (1,641)

Performance (selected - Type 303 / Type 316 with Thermostat Control)
Model | Btu/hr | Watts | Sound Level dBA
NHP4804SS / NHP4804SS-240 | 275 | 80 | 59*
NHP4808SS / NHP4808SS-240 | 550 | 162 | 67*
NHP4815SS / NHP4815SS-240 | 1,000 | 293 | 73
NHP4825SS / NHP4825SS-240 | 1,700 | 498 | 80
NHP4830SS / NHP4830SS-240 | 2,000 | 586 | 80
NHP4840SS / NHP4840SS-240 | 2,800 | 821 | 82
NHP4850SS / NHP4850SS-240 | 3,400 | 997 | 84
NHP4860SS / NHP4860SS-240 | 4,000 | 1,171 | 84
NHP4870SS / NHP4870SS-240 | 4,800 | 1,406 | 84
NHP4880SS / NHP4880SS-240 | 5,600 | 1,641 | 85
*With optional cold muffler installed. Cooling capacity measured at 100 PSIG (6.9 BAR) supply pressure.

How It Works
Compressed air is fed to the vortex tube within the Cabinet Cooler and split into hot and cold streams. Hot air is exhausted and muffled to atmosphere; cold air is directed into the enclosure using the cold air distribution kit. The slight positive internal pressure prevents outside air and contaminants from entering the control panel.

Accessories & Options

• Cold Air Distribution Kit (tubing, clips, fittings) to target hot spots
• Side Mount Kits for installations with limited top/side clearance (maintains NEMA rating)
• Electronic Temperature Control (ETC) upgrade for adjustable setpoint and internal display
• Optional cold muffler to reduce sound levels
• Filter separator (5 µm automatic drain) included; optional coalescing filter recommended if oil is present in compressed air

Specifications

• Marque: EXAIR
• Type: NEMA 4X (IP66) Non‑Hazardous Purge Cabinet Cooler® System
• Series/Models: NHP series (NHP48xxSS and variants; 303 / 316 stainless steel; 120VAC and 240VAC)
• Example SKU on page: PNHP4808SS
• Cooling capacity: 275 to 5,600 Btu/hr (80 to 1,641 Watts) depending on model
• Materials: Type 303 or Type 316 stainless steel construction
• Control: Thermostat control (factory set 95°F / 35°C); ETC optional
• Function: Cooling plus slight positive purge to prevent ingress of contaminants
• Filtration: 5 µm automatic drain filter included; coalescing filter recommended when oil present
• Mounting: Installs through standard electrical knockout; side mount kits available
• Approvals: UL Listed and CE compliant
• No moving parts — minimal maintenance
• Typical sound levels: 59–85 dBA depending on model (values with/without muffler indicated above)
