Side-mount electrical cabinet air conditioner NHP4350

compactindustrialfilter-less

Description

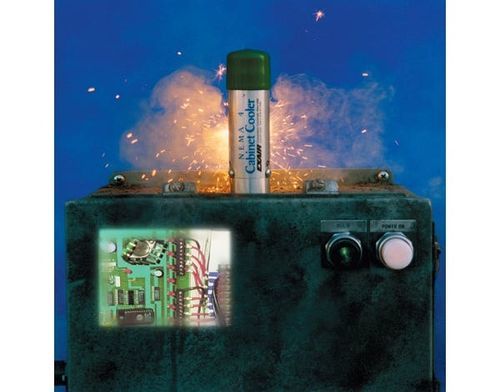

The NEMA 12 Non‑Hazardous Purge (NHP) Cabinet Cooler® PNHP series from EXAIR provides dust‑ and dirt‑resistant cabinet pressurization to prevent contaminants from entering electrical enclosures. Thermostat control limits compressed air use by activating cooling only when internal temperature approaches the setpoint (standard factory setting 95°F / 35°C, adjustable). Systems include a water‑dirt filter‑separator with automatic drain and a cold air distribution kit for effective internal airflow.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales

Advantages

• Low acquisition and operating cost
• Maintains positive pressure to exclude ambient dust and debris
• Compact design for limited space
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation
• Quick installation through a standard electrical knockout
• Preserves NEMA 12 (IP54) enclosure integrity
• Stabilizes internal temperature and humidity
• No CFCs
• No moving parts — maintenance free
• Stops nuisance tripping and heat-related failures
• Eliminates internal fans and filters

Models (Thermostat control) - NEMA 12 (IP54)
Model - Btu/hr (Watts)
NHP4304 - 275 (80)
NHP4308 - 550 (162)
NHP4315 - 1,000 (293)
NHP4325 - 1,700 (498)
NHP4330 - 2,000 (586)
NHP4340 - 2,800 (821)
NHP4350 - 3,400 (997)
NHP4360 - 4,000 (1,171)
NHP4370 - 4,800 (1,406)
NHP4380 - 5,600 (1,641)

Caractéristiques / spécifications techniques

• Brand: EXAIR
• SKU / Product code: PNHP4308
• Commercial name / model family: NEMA 12 NHP Cabinet Cooler® Systems
• Type: Non Hazardous Purge (NHP), thermostat control
• Standard thermostat setting: 95°F (35°C) (adjustable)
• Cooling capacity (model PNHP4308): 550 Btu/hr (162 Watts)
• Maximum available cooling capacity in family: up to 5,600 Btu/hr (1,641 Watts)
• Sound level (PNHP4308): 67 dBA (with optional cold muffler noted in family table)
• NEMA rating: NEMA 12 (IP54) — dust and oil tight for general industrial environments

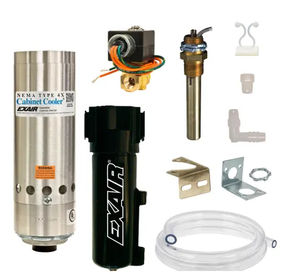

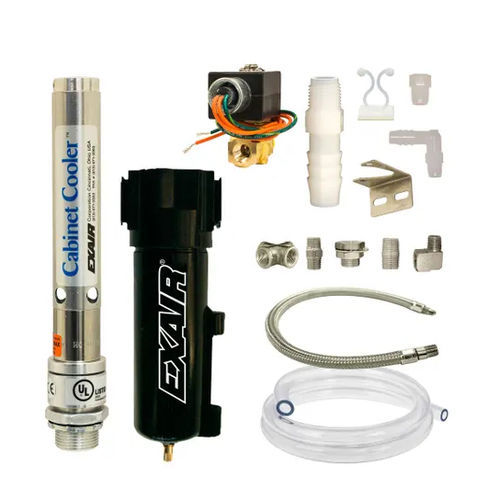

• Includes: Cabinet Cooler, 5 micron automatic drain water‑dirt filter separator, cold air distribution kit, solenoid valve (for thermostat systems)
• Cold air production: vortex tube powered — no moving parts
• Cold air temperature drop: approximately 54°F (30°C) below supply air at 100 PSIG (6.9 BAR)
• Supply: compressed air (performance depends on inlet pressure and temperature)
• Mounting: installs through standard electrical knockout; top or side mounting for NEMA 12; side mount kits available when required
• Voltage / solenoid options (systems): available in 110VAC, 240VAC and 24VDC solenoid configurations
• Filtration recommendation: 5 micron automatic drain standard; add coalescing oil‑removal filter where oil is present
• Certifications: UL Listed and CE compliant
• Maintenance: no moving parts — maintenance free
