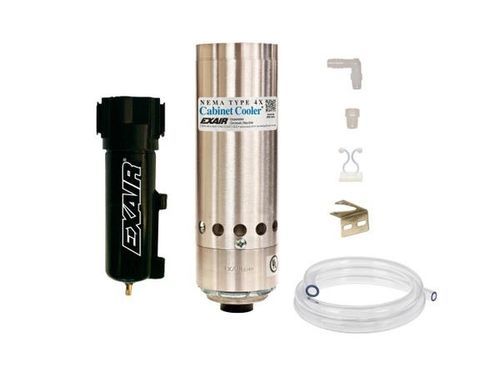

Side-mount electrical cabinet air conditioner HT4730SS-316

compactindustrialhigh-temperature

Description
EXAIR NEMA 4X (IP66) High Temperature Cabinet Cooler® Systems provide enclosure cooling for ambient temperatures from 125°F to 200°F (52°C to 93°C). Constructed in Type 303 or Type 316 stainless steel for food-service and corrosive environments, these continuous-operation systems include a Cabinet Cooler, cold air distribution kit and a 5-micron automatic drain filter. All units are UL listed and CE compliant. The Cabinet Cooler uses a vortex tube to generate cold air from compressed air with no moving parts and installs through a standard electrical knockout in minutes. NEMA 4X continuous systems are recommended where constant cooling and a positive purge are required.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Low operating cost
• Compact, simple installation
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation (model-dependent)
• Maintains NEMA 4 integrity (IP66)
• Stabilizes enclosure temperature and humidity
• No CFCs, no moving parts — minimal maintenance
• Mounts in standard electrical knockout
• Prevents nuisance tripping, heat damage and circuit drift
• Eliminates fans and room air filters

Models (select highlights)
NEMA 4X (IP66) High Temperature Cabinet Cooler Systems - Type 303 Stainless Steel
Model | Btu/hr. (Watts)
HT4715SS | 1,000 (293)
HT4725SS | 1,700 (498)
HT4730SS | 2,000 (586)
HT4740SS | 2,800 (821)
HT4750SS | 3,400 (997)
HT4760SS | 4,000 (1,171)
HT4770SS | 4,800 (1,406)
HT4780SS | 5,600 (1,641)

NEMA 4X (IP66) High Temperature Cabinet Cooler Systems - Type 316 Stainless Steel
Model | Btu/hr. (Watts)
HT4715SS-316 | 1,000 (293)
HT4725SS-316 | 1,700 (498)
HT4730SS-316 | 2,000 (586)
HT4740SS-316 | 2,800 (821)
HT4750SS-316 | 3,400 (997)
HT4760SS-316 | 4,000 (1,171)
HT4770SS-316 | 4,800 (1,406)
HT4780SS-316 | 5,600 (1,641)

Performance summary
Cooling capacities are rated at 100 PSIG (6.9 BAR) supply pressure. Sound levels vary by model (examples: HT4715SS ≈ 73 dBA; HT4725SS ≈ 80 dBA; HT4780SS ≈ 85 dBA). Continuous systems include the cooler, filter separator and cold air distribution kit. Thermostat-control systems add a thermostat, solenoid valve and, when specified, Electronic Temperature Control (ETC™).

Accessories & Options
Side Mount Kits for installations where top/side space is limited; Cold Air Distribution Kit (tubing, clips, fittings); 5-micron automatic drain water and dirt filter included; optional coalescing oil-removal filter for oil-laden compressed air; solenoid valves and ETC™ available as upgrades.

How it works
Compressed air enters the vortex-tube-powered Cabinet Cooler and is separated into hot and cold streams. Cold air is directed into the enclosure via the cold air distribution kit while hot air is exhausted. The system cools the enclosure and provides a slight positive purge to prevent ingress of outside air.

Technical specifications

• Series: NEMA 4X Cabinet Cooler® Systems (High Temperature, continuous operation)
• Brand: EXAIR
• Ambient operating range: 125°F to 200°F (52°C to 93°C) for High Temperature models
• Materials: Type 303 or Type 316 stainless steel (NEMA 4X corrosion-resistant construction)
• Cooling capacities: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts) depending on model
• Rated at 100 PSIG (6.9 BAR) supply pressure
• Typical cold air temperature drop: ≈54°F (30°C) below supply air at 100 PSIG
• Sound levels: model-dependent (approx. 73–85 dBA)
• Filtration: 5-micron automatic drain water and dirt filter included; coalescing filter recommended if oil is present
• Control options: continuous operation or thermostat control (ETC™ available)
• Typical thermostat setting (thermostatic systems): 95°F (35°C)
• Mounting: installs through standard electrical knockout; Side Mount Kits available (maintain NEMA rating)
• Standards: UL Listed and CE compliant
• Warranty: five year manufacturer warranty (as stated by manufacturer)
• Typical continuous system components: Cabinet Cooler, cold air distribution kit, filter separator
