Vertical electrical cabinet air conditioner 4730SS

side-mountcompactindustrial

Overview

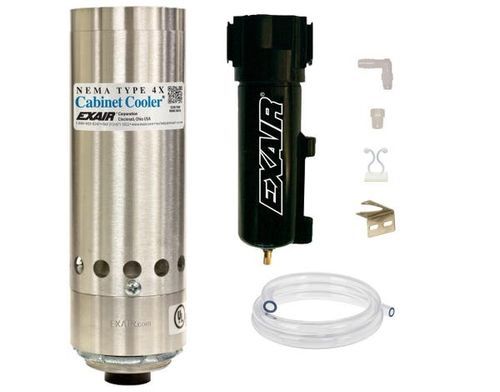

Cabinet Cooler® Systems cool and purge electronic control panels using compressed air and a vortex tube; the vortex tube produces cold air with no moving parts. NEMA 4X (IP66) units are dust-tight, oil-tight, splash resistant and corrosion resistant for indoor or outdoor use. NEMA 4X models include a low-pressure relief valve on the vortex tube and cabinet exhaust that closes when the cooler is off to preserve enclosure integrity. Continuous operation systems include the Cabinet Cooler, cold air distribution kit and a 5 µm automatic drain filter. Units are UL Listed and CE compliant.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Key features

• Corrosion-resistant stainless steel construction for harsh or washdown environments
• Compact design; mounts in a standard electrical knockout
• Cooling capacities from 275 Btu/hr (80 W) up to 5,600 Btu/hr (1,641 W)
• No moving parts — reduced maintenance
• Optional cold muffler for lower sound levels
• Thermostat and solenoid or Electronic Temperature Control (ETC™) options for controlled compressed air use
• Maintains NEMA 4X enclosure integrity while purging
• Includes 5 µm automatic drain filter; optional coalescing filter recommended if oil is present in compressed air

Models - NEMA 4X (IP66) Cabinet Cooler Systems - Type 303 Stainless Steel, Continuous Operation
4704SS | 275 Btu/hr (80 W)
4708SS | 550 Btu/hr (162 W)
4715SS | 1,000 Btu/hr (293 W)
4725SS | 1,700 Btu/hr (498 W)
4730SS | 2,000 Btu/hr (586 W)
4740SS | 2,800 Btu/hr (821 W)
4750SS | 3,400 Btu/hr (997 W)
4760SS | 4,000 Btu/hr (1,171 W)
4770SS | 4,800 Btu/hr (1,406 W)
4780SS | 5,600 Btu/hr (1,641 W)

Models - NEMA 4X (IP66) Cabinet Cooler Systems - Type 316 Stainless Steel, Continuous Operation
4704SS-316 | 275 Btu/hr (80 W)
4708SS-316 | 550 Btu/hr (162 W)
4715SS-316 | 1,000 Btu/hr (293 W)
4725SS-316 | 1,700 Btu/hr (498 W)
4730SS-316 | 2,000 Btu/hr (586 W)
4740SS-316 | 2,800 Btu/hr (821 W)
4750SS-316 | 3,400 Btu/hr (997 W)
4760SS-316 | 4,000 Btu/hr (1,171 W)
4770SS-316 | 4,800 Btu/hr (1,406 W)
4780SS-316 | 5,600 Btu/hr (1,641 W)

Performance (NEMA 4X Type 303/316 Stainless Steel Continuous Operation)
4704SS, 4704SS-316 | 275 Btu/hr | 80 W | 59 dBA*
4708SS, 4708SS-316 | 550 Btu/hr | 162 W | 67 dBA*
4715SS, 4715SS-316 | 1,000 Btu/hr | 293 W | 73 dBA
4725SS, 4725SS-316 | 1,700 Btu/hr | 498 W | 80 dBA
4730SS, 4730SS-316 | 2,000 Btu/hr | 586 W | 80 dBA
4740SS, 4740SS-316 | 2,800 Btu/hr | 821 W | 82 dBA
4750SS, 4750SS-316 | 3,400 Btu/hr | 997 W | 84 dBA
4760SS, 4760SS-316 | 4,000 Btu/hr | 1,171 W | 84 dBA
4770SS, 4770SS-316 | 4,800 Btu/hr | 1,406 W | 84 dBA
4780SS, 4780SS-316 | 5,600 Btu/hr | 1,641 W | 85 dBA
*With optional cold muffler installed. Cooling capacity based on 100 PSIG (6.9 BAR) supply pressure.

Other technical information

• Operation: Compressed air enters the vortex tube-powered Cabinet Cooler® and separates into hot and cold streams. Hot air exhausts through the vortex tube exhaust (muffled); cold air is directed into the enclosure via the distribution kit, purging the cabinet without allowing outside air ingress.
• Filtration: Systems include a 5 µm automatic drain water-and-dirt filter. Add a coalescing (oil removal) filter if oil is present in the compressed air.
• Cold air distribution kit: Flexible vinyl tubing, connectors and adhesive-backed clips to route cold air to hot spots or circulate internally.
• Humidity control: In continuous operation, relative humidity inside a sealed enclosure stabilizes near 45% with no condensation.
• Inlet air & performance: Approximate 54°F (30°C) drop from supply air temperature at 100 PSIG (6.9 BAR). Higher inlet temperature or lower supply pressure reduces cooling capacity.
• Mounting: Installs through a drilled hole or standard electrical knockout. NEMA 4 and 4X units must be mounted vertically; side-mount kits are available for limited-space installations while maintaining the NEMA rating.
• Controls: Thermostat-and-solenoid options (factory thermostat set to 95°F / 35°C) or Electronic Temperature Control (ETC™) for adjustable, precise internal temperature regulation.

Technical specifications

• NEMA rating: NEMA 4X (IP66) — dust-tight, oil-tight, splash resistant, corrosion resistant, indoor/outdoor service.
• Construction: Type 303 and Type 316 stainless steel options.
• Cooling capacities: 275 Btu/hr (80 W) to 5,600 Btu/hr (1,641 W), model dependent.
• Cold air source: Vortex tube (no moving parts).
• Typical cold air differential: up to ~16°F (~9°C) from vortex tube; typical temperature drop ~54°F (30°C) at 100 PSIG supply.
• Included (continuous systems): Cabinet Cooler®, cold air distribution kit and 5 µm automatic drain filter.
• Certifications: UL Listed and CE compliant.
• Example SKU shown on page: P4708SS (configurable with options such as BTU/hr, solenoid/ETC upgrade, voltage, material, high-temp or NHP, vortex capacity, air inlet and filter).
