Side-mount electrical cabinet air conditioner Model HT4840

verticalcompactfor computer rooms

Overview
Thermostat-controlled High Temperature Cabinet Cooler® Systems for ambient conditions from 125°F to 200°F (52°C to 93°C). These NEMA 4 (IP66) units incorporate low-pressure relief valves for both the vortex tube and cabinet exhaust; valves close when the cooler is not operating to preserve enclosure integrity. Standard thermostat control activates the cooler only when internal temperatures approach critical levels; factory set at 95°F (35°C) and adjustable. EXAIR Cabinet Coolers convert compressed air to cold air via a vortex tube with no moving parts and install through a standard electrical knockout. All units are UL Listed and CE compliant.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Laser housings
• Electronic scales

Advantages

• Low cost
• Compact footprint
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation
• Quick installation (minutes)
• Maintains NEMA 4 integrity (IP66)
• Stabilizes enclosure temperature and humidity
• No CFCs
• No moving parts — maintenance free
• Mounts in standard electrical knockout
• Prevents nuisance tripping and heat damage
• Eliminates fans and filters
• Reduces production loss
• Prevents circuit drift and contamination
• Provides washdown protection

Models / Capacities (Thermostat Control)
Model | Btu/hr (Watts)
HT4815 | 1,000 (293)
HT4825 | 1,700 (498)
HT4830 | 2,000 (586)
HT4840 | 2,800 (821)
HT4850 | 3,400 (997)
HT4860 | 4,000 (1,171)
HT4870 | 4,800 (1,406)
HT4880 | 5,600 (1,641)

Performance (Thermostat - Cooling / Sound)
Model(s) | Btu/hr | Watts | Sound Level dBA
HT4815, HT4815-240, HT4815-24VDC | 1,000 | 293 | 73
HT4825, HT4825-240, HT4825-24VDC | 1,700 | 498 | 80
HT4830, HT4830-240, HT4830-24VDC | 2,000 | 586 | 80
HT4840, HT4840-240, HT4840-24VDC | 2,800 | 821 | 82
HT4850, HT4850-240, HT4850-24VDC | 3,400 | 997 | 84
HT4860, HT4860-240, HT4860-24VDC | 4,000 | 1,171 | 84
HT4870, HT4870-240, HT4870-24VDC | 4,800 | 1,406 | 84
HT4880, HT4880-240, HT4880-24VDC | 5,600 | 1,641 | 85

How It Works
Compressed air enters the vortex-tube powered Cabinet Cooler and separates into hot and cold streams. Hot air is exhausted to atmosphere; cold air is directed into the control cabinet via a cold air distribution kit. The cabinet is cooled and purged at slight positive pressure, preventing ingress of outside air while removing internal heat.

Accessories & Options

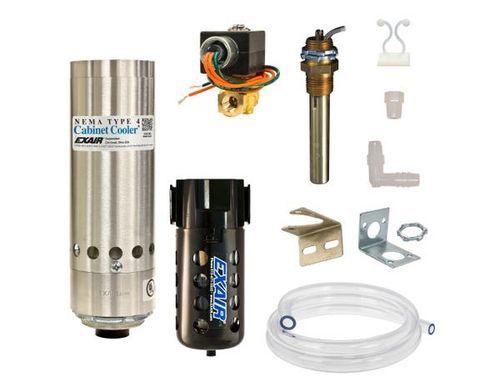

• Side Mount Kits: allow side mounting when top mount is not possible; maintain NEMA rating and fit a standard 1-1/2 NPS electrical knockout. NEMA 4/4X side mount kits are stainless steel.
• Cold Air Distribution Kit: tubing, clips and fittings to direct cold air to hotspots.
• Filtration: includes a 5 micron automatic drain water and dirt filter; coalescing (oil removal) filters recommended if inlet air contains oil.
• Control options: Standard thermostat control (factory set at 95°F / 35°C) or ETC (Electronic Temperature Control) upgrade for precise digital control and internal temperature feedback.
• Solenoid voltages: 120V 60Hz, 110V 50Hz, 240V 50/60Hz and 24VDC; solenoids are UL/CSA listed or recognized.

Specifications

• Ambient operating range: 125°F to 200°F (52°C to 93°C) for High Temperature models
• Thermostat: adjustable, factory set at 95°F (35°C); saves compressed air by operating only as needed
• Cooling capacity: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts) at 100 PSIG (6.9 BAR)
• Typical cold air temperature drop: ≈54°F (30°C) below supply air at 100 PSIG
• Vortex tube cold stage: cold discharge up to ≈16°F (-9°C) below supply in vortex tube stage (depends on inlet)
• NEMA rating: NEMA 4 (IP66) — dust-tight, oil-tight, splash resistant, indoor/outdoor capable; includes low-pressure relief valves
• Construction: aluminum Cabinet Cooler with 303 stainless steel vortex tube; NEMA 4/4X side mount kits use stainless steel
• Filtration: 5 micron automatic drain water and dirt filter included; coalescing filter recommended when oil present
• Solenoid options: multiple voltages including 24VDC and 120/240VAC; UL/CSA listed/recognized
• Mounting: installs through standard 1-1/2 NPS electrical knockout; NEMA 4/4X units must be mounted vertically unless side mount kit used
• Maintenance: no moving parts — maintenance free; no room air filters to clog
• Certifications: UL Listed and CE compliant
• Warranty: five-year "Built To Last" warranty
