Side-mount electrical cabinet air conditioner Model HT4350

verticalcompactindustrial

Overview
High-temperature NEMA 12 Cabinet Cooler® systems with thermostat control for ambient conditions from 125°F to 200°F (52°C to 93°C). Thermostat-controlled units include an adjustable thermostat factory-set at 95°F (35°C) to activate cooling only when internal temperatures approach the set point. EXAIR Cabinet Cooler® units use a vortex tube to produce cold air from compressed air with no moving parts. Compact design installs through a standard electrical knockout. All units are UL Listed and CE compliant.

Applications

• Programmable controllers
• Line control cabinets
• Motor control centers
• Relay panels
• NC/CNC systems
• Modular control centers
• CCTV cameras
• Computer cabinets
• Cool laser housings
• Electronic scales

Advantages

• Operates in ambient temperatures up to 200°F
• Low-cost solution
• Compact footprint
• Cooling capacities up to 5,600 Btu/hr (1,641 Watts)
• Quiet operation (optional cold muffler available)
• Rapid installation through standard electrical knockout
• Maintains NEMA 12 integrity (IP54)
• Stabilizes enclosure temperature and humidity
• No CFCs
• No moving parts — maintenance free
• Eliminates room air intake—no fans or external filters required
• Prevents nuisance tripping and heat damage
• Reduces production loss and circuit drift
• Protects electronics from dirt and dust

Models — NEMA 12 (IP54) High Temperature Cabinet Cooler Systems, Thermostat Control

• HT4315 | 1,000 Btu/hr (293 Watts)
• HT4325 | 1,700 Btu/hr (498 Watts)
• HT4330 | 2,000 Btu/hr (586 Watts)
• HT4340 | 2,800 Btu/hr (821 Watts)
• HT4350 | 3,400 Btu/hr (997 Watts)
• HT4360 | 4,000 Btu/hr (1,171 Watts)
• HT4370 | 4,800 Btu/hr (1,406 Watts)
• HT4380 | 5,600 Btu/hr (1,641 Watts)

Models — NEMA 4 (IP66) High Temperature Cabinet Cooler Systems, Thermostat Control (240V)

• HT4315-240 | 1,000 Btu/hr (293 Watts)
• HT4325-240 | 1,700 Btu/hr (498 Watts)
• HT4330-240 | 2,000 Btu/hr (586 Watts)
• HT4340-240 | 2,800 Btu/hr (821 Watts)
• HT4350-240 | 3,400 Btu/hr (997 Watts)
• HT4360-240 | 4,000 Btu/hr (1,171 Watts)
• HT4370-240 | 4,800 Btu/hr (1,406 Watts)
• HT4380-240 | 5,600 Btu/hr (1,641 Watts)

Models — NEMA 4 (IP66) High Temperature Cabinet Cooler Systems, Thermostat Control (24VDC)

• HT4315-24VDC | 1,000 Btu/hr (293 Watts)
• HT4325-24VDC | 1,700 Btu/hr (498 Watts)
• HT4330-24VDC | 2,000 Btu/hr (586 Watts)
• HT4340-24VDC | 2,800 Btu/hr (821 Watts)
• HT4350-24VDC | 3,400 Btu/hr (997 Watts)
• HT4360-24VDC | 4,000 Btu/hr (1,171 Watts)
• HT4370-24VDC | 4,800 Btu/hr (1,406 Watts)
• HT4380-24VDC | 5,600 Btu/hr (1,641 Watts)

Performance (NEMA 12 HT Cabinet Cooler with Thermostat)

• HT4315, HT4315-240, HT4315-24VDC | 1,000 Btu/hr | 293 Watts | 73 dBA*
• HT4325, HT4325-240, HT4325-24VDC | 1,700 Btu/hr | 498 Watts | 74 dBA*
• HT4330, HT4330-240, HT4330-24VDC | 2,000 Btu/hr | 586 Watts | 74 dBA*
• HT4340, HT4340-240, HT4340-24VDC | 2,800 Btu/hr | 821 Watts | 78 dBA*
• HT4350, HT4350-240, HT4350-24VDC | 3,400 Btu/hr | 997 Watts | 75 dBA*
• HT4360, HT4360-240, HT4360-24VDC | 4,000 Btu/hr | 1,171 Watts | 77 dBA*
• HT4370, HT4370-240, HT4370-24VDC | 4,800 Btu/hr | 1,406 Watts | 77 dBA*
• HT4380, HT4380-240, HT4380-24VDC | 5,600 Btu/hr | 1,641 Watts | 79 dBA*

How it works
Compressed air enters the vortex-tube-powered Cabinet Cooler® and splits into a hot stream (exhausted through a muffled outlet) and a cold stream (directed into the cabinet via the cold air distribution kit). The displaced hot air exhausts from the enclosure, creating a slight positive pressure that cools and purges without drawing room air into the control panel.

Other considerations

• Filtration: Includes 5 micron automatic drain water & dirt filter; use a coalescing (oil-removal) filter if oil is present.

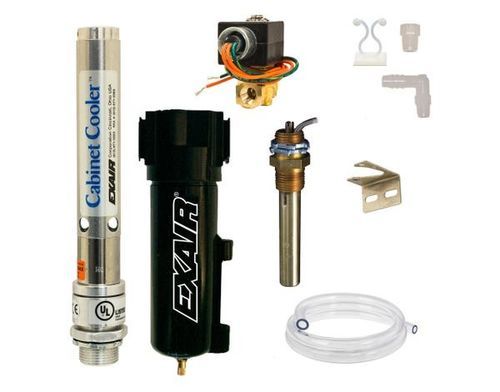

• Cold Air Distribution Kit: Flexible vinyl tubing, connectors and clips to route cold air to hot spots.
• Humidity: Sealed continuous-operation units stabilize around 45% relative humidity inside the enclosure; no internal condensation when installed correctly.
• Inlet Air Temperature: Approx. 54°F (30°C) temperature drop from supply air at 100 PSIG (6.9 BAR); elevated inlet temp or reduced pressure lowers capacity.
• Mounting: Installs through standard electrical knockout (1-1/2 NPS). NEMA 12 units can be top- or side-mounted; NEMA 4/4X must be mounted vertically unless using an approved Side Mount Kit.
• Solenoid Valve & Thermostat: Systems include solenoid valve and thermostat factory-set at 95°F (35°C), typical control ±2°F (1°C); solenoid options available in multiple voltages, UL/CSA rated.
• Electronic Temperature Control (ETC): Optional digital ETC with LED readout and thermocouple feedback for precise internal temperature monitoring.

Technical specifications

• Series name: NEMA 12 HT Cabinet Cooler® Systems (thermostat control)
• NEMA rating: NEMA 12 (IP54) — dust and oil tight (NEMA 4 / 4X variants available)
• Ambient operating range: 125°F to 200°F (52°C to 93°C)
• Thermostat: Adjustable, factory set at 95°F (35°C), typical control ±2°F (1°C)
• Cooling capacities: 1,000 to 5,600 Btu/hr (293 to 1,641 Watts)
• Cold air temperature drop: ≈54°F (30°C) below supply air at 100 PSIG (6.9 BAR)
• Sound levels (with optional cold muffler): ~73–79 dBA depending on model
• Filtration: 5 micron automatic drain water & dirt filter included; coalescing filter recommended if oil present
• Construction: Vortex-tube based, no moving parts — maintenance free
• Certifications: UL Listed and CE compliant
• Includes: Cooler, thermostat, solenoid valve, filter separator and cold air distribution kit (for thermostat systems)
