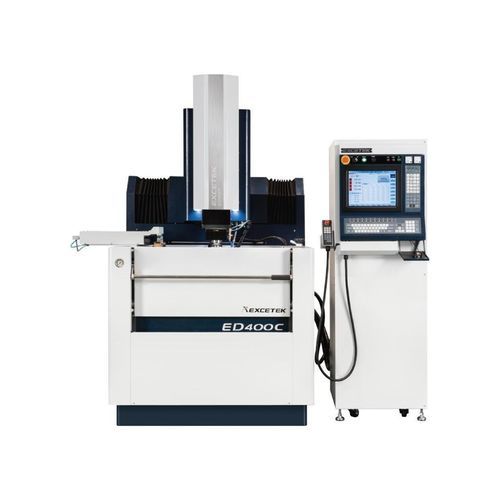

Die sinking electrical discharge machine ED400C

wire EDMCNC

Short description
CNC EDM die sinker ED400C with X/Y travel 400 x 300 mm, Z travel 350 mm and work table 700 x 400 mm. Suitable for medium-size mold production and general sinker EDM applications.

Overview
The ED400C is a production-oriented CNC sinker EDM designed to handle medium molds and precision sinker EDM tasks. The machine balances workable envelope and shop-floor footprint for toolrooms and moldmaking shops.

Features

• Superior erosion function: MOSFET sparking circuit reduces electrode wear and increases erosion speed for fine finishes and consistent removal rates.
• Simple maintenance: Generator uses front/back assembly modules with clear circuit layout and fuse protection for easier servicing and PCB replacement.
• Stable thermal design: Separate heat-flow paths for hot components and cold circuits with enhanced heat sinking for stable long-term operation.
• After-sales support: Includes operation guidance, operator training, maintenance instructions and application support.

Specification brief (from product header)
X/Y Travel: 400 x 300 mm
Z Travel: 350 mm
Work Table: 650 x 350 mm
Max. Work piece: 1000 x 550 x 340 mm

Detailed Specifications

• X/Y travel: 400 x 300 mm
• Z travel: 350 mm
• Work table: 700 x 400 mm
• Max. work piece size: 850 x 580 mm
• Max. work piece (alternate/brief): 1000 x 550 x 340 mm
• Max. work piece weight: 1000 kg
• Max. electrode weight: 50 kg
• Machine weight: 2800 kg
• Outside dimensions (machine body + travel + tank + generator): 2344 x 2110 x 2410 mm
• Electrode head to work table distance: 300 ~ 650 mm

Oil filter tank

• Tank capacity: 450 L
• Tank weight: - kg
• Paper filter: 3 pcs
• Outside dimensions: built-in

Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jiq

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED400C
• Series: CNC Series
• X/Y travel: 400 x 300 mm
• Z travel: 350 mm
• Work table: 700 x 400 mm (brief: 650 x 350 mm)
• Max. work piece size: 850 x 580 mm (brief/alternate: 1000 x 550 x 340 mm)
• Max. work piece weight: 1000 kg
• Max. electrode weight: 50 kg
• Machine weight: 2800 kg
• Overall dimensions (body + travel + tank + generator): 2344 x 2110 x 2410 mm
• Electrode head to work table distance: 300 ~ 650 mm
• Oil filter tank capacity: 450 L
• Paper filter: 3 pcs
