Die sinking electrical discharge machine ED800C

wire EDMCNC

Short description

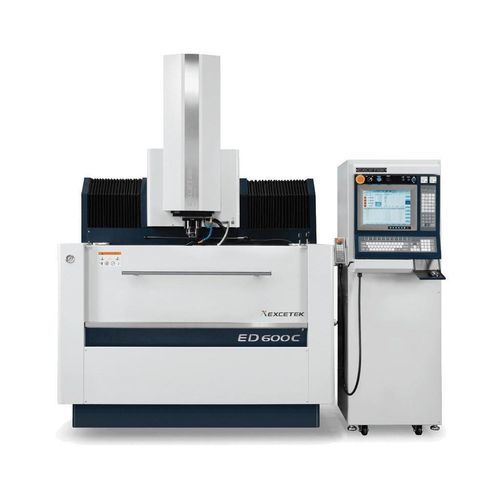

Die-sinker EDM machine ED800C with X/Y travel 800 x 600 mm, Z travel 500 mm. Work table and max. workpiece dimensions suitable for medium-to-large moulds and tooling.

Applications

• Industrial die-sinking EDM for mould & tool making, precision cavities and complex profiles in hardened materials.

Key specifications

• Model: ED800C
• X/Y travel: 800 x 600 mm (brief on page also shows 800 x 500 mm)
• Z travel: 500 mm
• Work table: 1200 x 700 mm (brief on page also shows 1250 x 750 mm)
• Max. workpiece size: 1600 x 1000 x 500 mm
• Max. workpiece weight: 4000 kg
• Max. electrode weight: 350 kg
• Machine weight: 5000 kg
• Outside dimensions (machine+travel+tank+generator): 3260 x 3320 x 3200 mm
• Electrode head to work table distance: 420 ~ 920 mm
• Oil filter tank capacity: 1500 L; tank weight: 450 kg; paper filter: 4 pcs

Generator & performance

• MOSFET sparking circuit for reduced electrode wear and high erosion speed.
• Front/back assembly module design for simplified maintenance and fast PCB exchange.
• Separate double heat-flow cooling for stable generator operation and extended component life.

Maintenance & after-sales

• Modular generator layout and clear circuit protection for straightforward servicing.
• Supplier offers operation training, maintenance support and application assistance.

Tank & filtration

• Oil filter tank: 1500 L capacity with 4 paper filters for effective dielectric filtration.

Accessories & options
Standard accessories

• Alcohol extinguisher
• Working lamp
• Leveling pads
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp

Optional accessories

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Notes

• Values shown include items from the product page; some brief listings differ from the technical section (X/Y travel and work table). Verify final specifications with the supplier before ordering.
