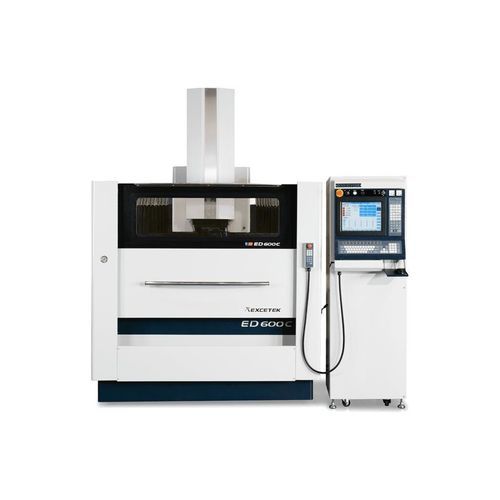

Die sinking electrical discharge machine ED600C CE

wire EDMCNC

Summary
X/Y travel: 650 x 450 mm
Z travel: 400 mm
Work table: 1000 x 600 mm
Max. workpiece: 1290 x 700 mm

Overview
The EXCETEK ED600C CE is a compact die-sinker EDM designed for mold making and medium-sized workpieces, offering a balance of working area and precision for industrial tooling applications.

Features

• MOSFET sparking circuit for reduced electrode wear and faster erosion speed, achieving fine erosion with smooth surface finish.
• Optional tungsten carbide sparking circuit for enhanced durability.
• Oil filter tank (standard): 1000 L capacity with paper filters (4 pcs).

Simple Maintenance
The generator and control modules use a front-and-back assembly design with clear circuit labeling and fuse protection, simplifying maintenance checks and PCB replacement for service teams.

Stable Generator With Performance
Separate hot-component and cold-circuit heat-flow design with an adequate heatsink ensures generator stability and long-term operation with minimal maintenance.

After-sales Service
EXCETEK provides operation training, maintenance and application support to ensure reliable service and customer satisfaction.

Oil filter tank
Tank capacity: 1000 L
Tank weight: 350 kg
Paper filter: 4 pcs
Outside dimensions: 2800 x 2650 x 2666 mm

Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jig

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED600C CE
• X/Y travel: 650 x 450 mm
• Z travel: 400 mm
• Work table: 1000 x 600 mm
• Max. workpiece size: 1290 x 700 mm
• Max. workpiece weight: 300 kg
• Max. electrode weight: 150 kg
• Machine weight: 3900 kg
• Outside dimensions (machine body + travel + tank + generator): 2110 x 2580 x 2575 mm
• Electrode head to work table distance: 300 ~ 700 mm
• Oil filter tank - Tank capacity: 1000 L
• Oil filter tank - Tank weight: 350 kg
• Oil filter tank - Paper filter: 4 pcs
• Oil filter tank - Outside dimensions: 2800 x 2650 x 2666 mm
