Die sinking electrical discharge machine ED70Z

wire EDMCNC

Product Overview

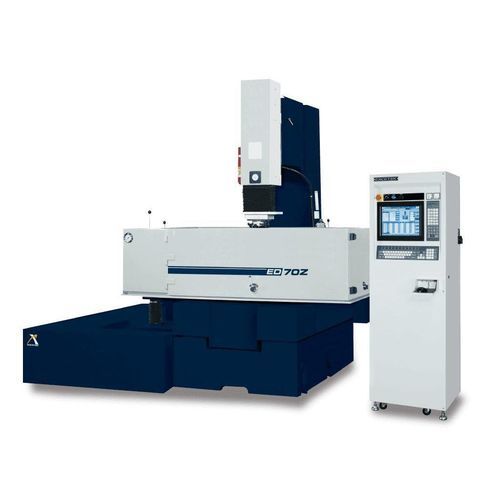

ED70Z — ZNC Series die sinking EDM designed for precision cavity machining and electrode machining. X/Y Travel: 700 x 550 mm. Z Travel: 250 mm. Work table: 1100 x 600 mm. Max. workpiece: 1680 x 950 x 500 mm.

Features

• Superior Erosion Function: MOSFET sparking circuit for reduced electrode wear, high erosion speed and ability to achieve fine surface finish.
• Simple Maintenance: Generator uses front and back assembly module design with clear circuit functions and fuse protection for easier maintenance and PCB exchange.
• Stable Generator With Performance: Separate front and back dual heat-flow system isolates hot components from cold circuits with sufficient heat sinking to improve stability and minimize maintenance.
• After-Sale Service Quality: After-sales support includes operation training, maintenance and application assistance.

Accessory
Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jig

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• X/Y travel: 700 x 550 mm
• Z travel: 250 mm
• U travel: 300 mm
• Work table: 1100 x 600 mm
• Max. work piece size: 1680 x 950 x 500 mm
• Max. work piece weight: 2000 kg
• Max. electrode weight: 250 kg
• Machine weight: 3100 kg
• Machine dimensions: 4945 x 2230 x 2532 mm
• Electrode head to work table distance: 330 ~ 880 mm
• Oil filter tank capacity: 1120 L
• Oil filter tank weight: 400 kg
• Paper filter: 4 pcs
