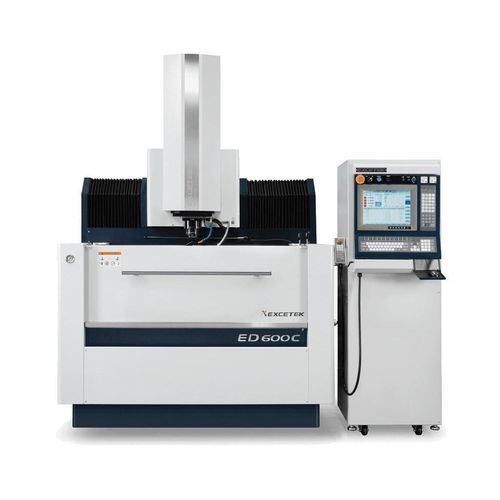

Die sinking electrical discharge machine ED600C

wire EDMCNC

Short description
Compact die-sinker EDM designed for medium mould production. Working envelope and table dimensions suit a wide range of typical production and toolroom tasks.

Overview
Best seller among the production models: the ED600C offers a practical balance between workspace and footprint for medium molds. The machine combines a MOSFET-based generator with a serviceable mechanical layout to support stable machining and straightforward maintenance.

Features

• Superior erosion function: EXCETEK EDM uses a MOSFET sparking circuit that reduces electrode wear while delivering fast erosion and fine surface finish.
• Simple maintenance: the EXCETEK generator features front-and-back modular assemblies with clear circuit indications and fuse protection to simplify inspections and PCB exchange.
• Stable generator performance: separate dual heat-flow paths isolate hot components from sensitive circuits and an adequate heat sink improves generator stability for minimal maintenance needs.
• After-sales support: EXCETEK provides operation training, maintenance and application support to ensure reliable service and customer satisfaction.

Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jig

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED600C
• X/Y travel: 650 x 450 mm (alternate value 650 x 400 mm also reported)
• Z travel: 400 mm
• Work table: 1000 x 600 mm
• Max. work piece size: 1290 x 700 mm
• Max. work piece weight: 300 kg
• Max. electrode weight: 50 kg
• Machine weight: 3900 kg
• Outside dimensions (machine body + travel + tank + generator): 2791 x 2669 x 2666 mm
• Electrode head to work table distance: 300 ~ 700 mm
• Oil filter tank - Capacity: 1200 L
• Oil filter tank - Weight: 350 kg
• Oil filter tank - Paper filter: 4 pcs
• Oil filter tank - Outside dimensions: 2020 x 530 x 1060 mm
