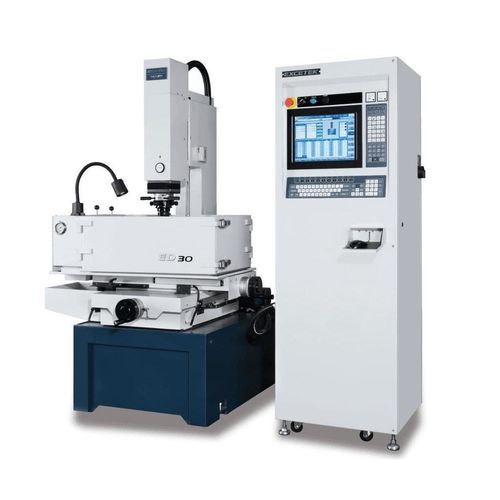

ED30Z sinker electrical discharge machine (ZNC Series) with X/Y travel 300 x 200 mm, Z travel 200 mm and work table 600 x 300 mm. Designed for precise erosion of conductive materials and medium-size workpieces up to 800 x 480 x 290 mm and 550 kg maximum.

Features

• MOSFET sparking circuit (EXCETEK EDM) to reduce electrode wear and increase erosion speed, enabling fine erosion with improved surface finish.
• Modular generator design for simplified maintenance: front and rear assembly modules, clear circuit layout and fuse protection for easier PCB exchange.
• Stable thermal management: separate heat flow for hot components and cold circuits with adequate heat sinks to improve generator stability and reduce maintenance.
• After-sales support: service, operator training and maintenance assistance provided as part of the offering.

Oil filter tank

• Tank capacity: 350 L
• Tank weight: not specified
• Paper filter: 2 pcs
• Outside dimensions: built-in / not specified

Accessories
Standard accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jiq

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED30Z
• Series: ZNC Series
• X/Y travel: 300 x 200 mm
• Z travel: 200 mm
• U travel: 200 mm
• Work table: 600 x 300 mm
• Max. workpiece size: 800 x 480 x 290 mm
• Max. workpiece weight: 550 kg
• Max. electrode weight: 120 kg
• Machine weight: 1150 kg
• Machine dimensions (W x D x H): 2525 x 1710 x 2092 mm
• Electrode head to work table distance: 160 ~ 510 mm
• Oil filter tank capacity: 350 L
• Paper filter: 2 pcs
