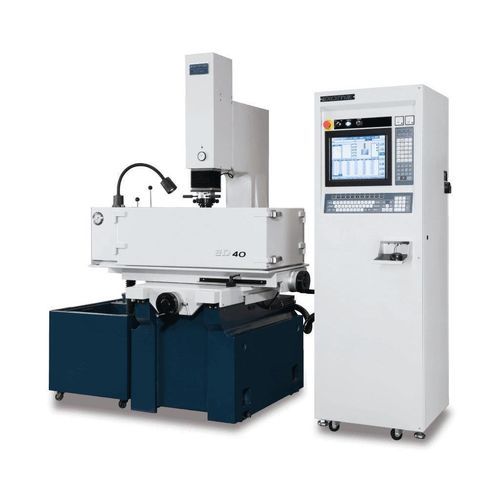

Die sinking electrical discharge machine ED40Z

wire EDMCNC

Short description
X/Y travel: 400 x 300 mm
Z travel: 180 mm
Work table: 650 x 350 mm
Max. work piece: 920 x 500 x 300 mm

Features
Superior erosion function
EXCETEK EDM integrates a MOSFET sparking circuit that reduces electrode wear while increasing erosion speed, enabling fine erosion and improved surface finish.

Simple maintenance
The EXCETEK generator uses a front-and-back modular assembly with fuse protection, making circuit functions clear and facilitating maintenance checks and PCB replacement.

Stable generator performance
Separate front and back dual heat-flow system isolates hot components from cold circuits and uses dedicated heat sinks to enhance generator stability and minimize maintenance intervals.

After-sales support
EXCETEK provides operation, training, maintenance and application support to ensure service quality and customer satisfaction.

Oil filter tank
Tank capacity: 350 L
Tank weight: 160 kg
Paper filter: 2 pcs

Accessory

• Standard accessories: Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jig

• Options: Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• X/Y travel: 400 x 300 mm
• Z travel: 180 mm
• U travel: 200 mm
• Work table: 650 x 350 mm
• Max. work piece size: 920 x 500 x 300 mm
• Max. work piece weight: 700 kg
• Max. electrode weight: 120 kg
• Machine weight: 1350 kg
• Machine dimensions: 2525 x 1710 x 2092 mm
• Electrode head to work table distance: 160 ~ 590 mm
• Oil filter tank capacity: 350 L
• Oil filter tank weight: 160 kg
• Paper filter: 2 pcs
