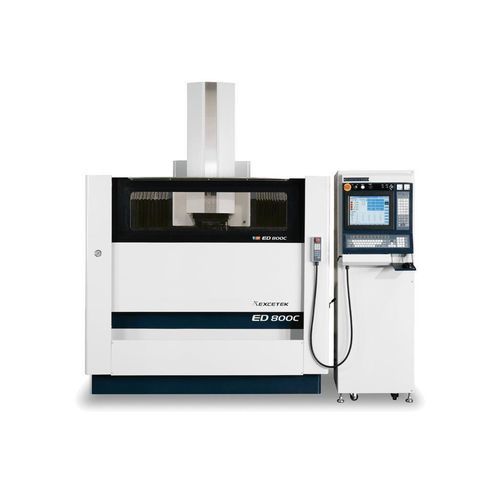

Die sinking electrical discharge machine ED800C CE

wire EDMfor large partsCNC

Short description
Die-sinking EDM (electrical discharge machining) ED800C CE with X/Y travel 800 × 600 mm, Z travel 500 mm, work table 1250 × 750 mm, max workpiece 1700 × 1000 mm, machine weight 5300 kg.

Overview

• Compact die-sinking EDM designed for medium to large mould and die applications where a large work table and high workpiece capacity are required.

Specification (detailed)
X/Y travel: 800 x 600 mm
Z travel: 500 mm
Work table: 1250 x 750 mm
Max. work piece size: 1700 x 1000 mm
Max. work piece weight: 5000 kg
Max. electrode weight: 300 kg
Machine weight: 5300 kg
Outside dimensions (machine body + travel + tank + generator): 3150 x 3150 x 3100 mm
Electrode head to work table distance: 460 ~ 960 mm

Oil filter tank
Tank capacity: 1430 L
Tank weight: 450 kg
Paper filter: 6 pcs

Features

• Superior erosion function — MOSFET sparking circuit reduces electrode wear and increases erosion speed for finer finishes.
• Simple maintenance — Front/back modular generator design with clear circuit indicators and fuse protection for easier servicing and PCB exchange.
• Stable generator performance — Dual heat-flow design and adequate heat sinks improve stability and reduce maintenance.
• After-sale service — Operation, training and maintenance support available to ensure uptime and application support.

Accessory
Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jig

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED800C CE
• Series: CNC Series
• X/Y travel: 800 x 600 mm (detailed specification)
• Alternate X/Y travel value shown in brief: 800 x 500 mm
• Z travel: 500 mm
• Work table: 1250 x 750 mm
• Max. work piece size: 1700 x 1000 mm
• Max. work piece weight: 5000 kg
• Max. electrode weight: 300 kg
• Machine weight: 5300 kg
• Outside dimensions (body + travel + tank + generator): 3150 x 3150 x 3100 mm
• Electrode head to work table distance: 460 ~ 960 mm
• Oil filter tank capacity: 1430 L
• Oil filter tank weight: 450 kg
• Paper filters: 6 pcs
