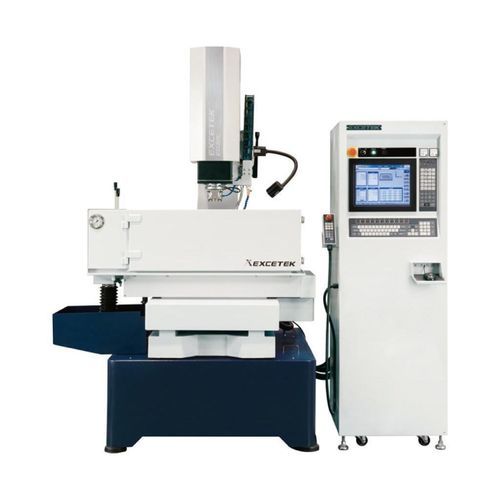

Die sinking electrical discharge machine ED30C

wire EDMCNC

Product overview
Compact sinker EDM designed for easy operation and industrial machining applications.

Key dimensions & capacities

• X/Y Travel: 300 x 250 mm
• Z Travel: 300 mm
• Work Table: 650 x 350 mm
• Max. Work Piece Size: 770 x 500 x 300 mm
• Max. Work Piece Weight: 550 kg
• Max. Electrode Weight: 50 kg
• Machine Weight: 1450 kg
• Outside Dimensions (Machine body+Travel+Tank+Generator): 2340 x 1690 x 2250 mm
• Electrode Head to Work Table Distance: 280 ~ 580 mm

Oil filter tank

• Tank capacity: 350 L
• Paper filter: 2 pcs
• Tank weight: not specified
• Outside dimensions: built-in (not specified)

Generator features

• Superior erosion function: MOSFET sparking circuit reduces electrode wear, increases erosion speed and improves surface finish.
• Simple maintenance: Front and rear assembly module design with clear circuit function and fuse protection for easier maintenance and PCB replacement.
• Stable performance: Separate dual heat-flow system for hot components and cold circuits with adequate heatsink to enhance generator stability and minimize maintenance.
• After-sales support: Operation, training, maintenance and application assistance provided to ensure service quality and customer satisfaction.

OB-Mode / Imaging (illustrated)
Multiple product and process images available on the original product page illustrating OB-Mode and machining examples (images not included here).

Accessory
Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 Drill chuck
• Tools box
• Clamp

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Caractéristiques / spécifications techniques

• Model: ED30C
• Series: CNC Series
• X/Y Travel: 300 x 250 mm
• Z Travel: 300 mm
• Work Table: 650 x 350 mm
• Max. Work Piece Size: 770 x 500 x 300 mm
• Max. Work Piece Weight: 550 kg
• Max. Electrode Weight: 50 kg
• Machine Weight: 1450 kg
• Outside Dimensions (Machine body+Travel+Tank+Generator): 2340 x 1690 x 2250 mm
• Electrode Head to Work Table Distance: 280 ~ 580 mm
• Oil Filter Tank Capacity: 350 L
• Paper Filter: 2 pcs
• Standard Accessories: Alcohol extinguisher; Working lamp; Leveling pad; Flushing unit; Paper filter; 1/2 Drill chuck; Tools box; Clamp
• Options: Oil cooling system; Permanent magnetic pedestal; Tungsten carbide sparking circuit
