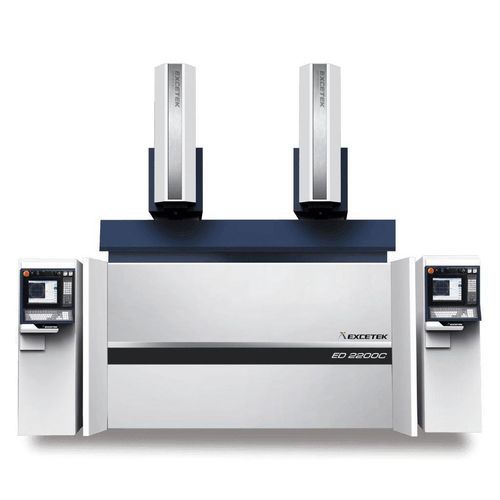

Die sinking electrical discharge machine ED2200C-2H

wire EDMCNC

Short description
X/Y Travel : 1550(775) x 1000 mm
Max. work piece weight : 10000
Machine weight : 15000 kgs
Outside Dimensions : 5350 x 4610 x 3960 mm
Electrode Head to Work Table Distance : 760 ~ 1360

Features

• Superior erosion performance — EXCETEK EDM uses a MOSFET sparking circuit to reduce electrode wear and increase erosion speed, enabling fine erosion with smooth surface finish.
• Simple maintenance — Generator modules are designed for front and back access with clear circuit separation and fuse protection, facilitating maintenance checks and PCB replacement.
• Stable generator performance — Separate hot and cold circuits with a dual heat flow system and adequate heatsinks improve generator stability and minimize maintenance requirements.
• After-sales support — EXCETEK provides operation training, maintenance and application support to ensure service quality and customer satisfaction.

Generator Feature (summary)
MOSFET sparking circuit for reduced electrode wear and fast erosion; front/back assembly module design with fuse protection for easy maintenance; separated double heat flow system for stable generator performance; after-sales service including operation, training and maintenance.

Accessory
Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jiq

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED2200C-2H
• X/Y travel: 1550(775) x 1000 mm
• Max. work piece weight: 10000
• Machine weight: 15000 kgs
• Outside Dimensions: 5350 x 4610 x 3960 mm
• Electrode Head to Work Table Distance: 760 ~ 1360
• Oil filter tank capacity: 5000 L
• Oil filter tank weight: 1050 kg
• Oil filter tank outside dimensions: 3700 x 1850 x 780 mm
