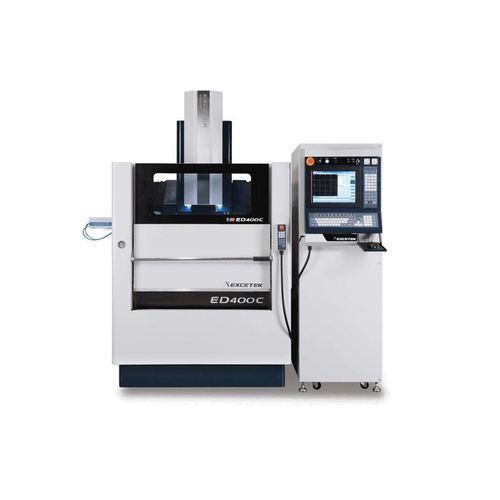

Die sinking electrical discharge machine ED400C CE

wire EDMCNC

Overview
The ED400C CE is a die-sinking EDM designed for medium-size mould and tooling applications. It offers a balanced work envelope and robust specification for high-precision machining of complex cavities.

Key dimensions (short description)
X/Y Travel : 400 x 300 mm
Z Travel : 350 mm
Work Table : 650 x 350 mm
Max. Work piece : 1000 x 550 x 340 mm

Specification (detailed)

• X/Y travel: 400 x 300 mm
• Z travel: 350 mm
• Work table: 650 x 400 mm (note: short description lists 650 x 350 mm)
• Max. work piece size: 1000 x 550 x 340 mm
• Max. work piece weight: 1000 kg
• Max. electrode weight: 100 kg
• Machine weight: 2500 kg
• Outside Dimensions (Machine body+Travel+Tank+Generator): 1950 x 2160 x 2300 mm
• Electrode Head to Work (Table Distance): 55 ~ 415 mm

Oil filter tank

• Tank capacity: 450 L
• Tank weight: - kg
• Paper filter: 2 pcs
• Outside dimensions: Built-in

Generator Feature

• Superior erosion function: MOSFET-based sparking circuit reduces electrode wear and increases erosion speed while maintaining fine surface finish.
• Simple maintenance: Front/back assembly module design with clear circuit segmentation and fuse protection for easier maintenance and PCB replacement.
• Stable performance: Separate double heat-flow system for hot components and cold circuits with extended heat sinks to enhance stability and reduce downtime.
• After-sales support: Manufacturer provides operation training, maintenance guidance and application support.

OB-Mode
Multiple OB-Mode images illustrating operations and modes are available in the product gallery on the page.

Accessory
Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jig

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED400C CE
• X/Y Travel: 400 x 300 mm
• Z Travel: 350 mm
• Work Table (short desc): 650 x 350 mm
• Work Table (spec block): 650 x 400 mm
• Max. work piece size: 1000 x 550 x 340 mm
• Max. work piece weight: 1000 kg
• Max. electrode weight: 100 kg
• Machine weight: 2500 kg
• Outside Dimensions (Machine body+Travel+Tank+Generator): 1950 x 2160 x 2300 mm
• Electrode Head to Work (Table Distance): 55 ~ 415 mm
• Tank capacity: 450 L
• Tank weight: - kg
• Paper filter: 2 pcs
