Die sinking electrical discharge machine ED1400C

wire EDMCNC

Overview

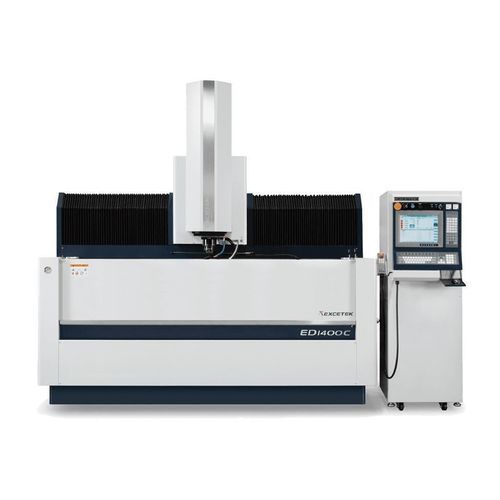

The ED1400C is a die-sinking EDM machine designed for machining large workpieces with controlled electrode wear and precise surface finishing. It integrates a large work table and a generator optimized for stable erosion performance and simplified maintenance.

Key dimensions

• Model: ED1400C
• X/Y travel: 1400 x 700 mm
• Z travel: 500 mm
• Work table: 1700 x 950 mm
• Maximum workpiece size: 2100 x 1200 x 500 mm
• Maximum workpiece weight: 6000 kg
• Maximum electrode weight: 450 kg
• Machine weight: 8000 kg
• Outside dimensions (machine body + travel + tank + generator): 3700 x 3930 x 3260 mm
• Electrode head to work table distance: 550 ~ 1050 mm

Oil filter tank

• Tank capacity: 2200 L
• Tank weight: 600 kg
• Paper filter: 8 pcs
• Outside dimensions: 2600 x 1600 x 580 mm

Generator features

• Erosion control: MOSFET-based sparking circuit reduces electrode wear, increases erosion speed and enables fine finishing with controlled surface roughness.
• Maintenance: Modular front/back assembly with clear circuit separation and fuse protection for easier maintenance and PCB replacement.
• Thermal management: Separate dual heat-flow paths for hot components and cold circuits with dedicated heat sinks to improve stability and minimize downtime.
• After-sales support: Operation training, maintenance assistance and application support are provided.

OB-Mode
OB-Mode includes illustrative operation images showing modes and operational sequences to assist setup and process verification.

Accessories
Standard accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 drill chuck
• Tools box
• Clamp jiq

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED1400C
• X/Y travel: 1400 x 700 mm
• Z travel: 500 mm
• Work table: 1700 x 950 mm
• Maximum workpiece size: 2100 x 1200 x 500 mm
• Maximum workpiece weight: 6000 kg
• Maximum electrode weight: 450 kg
• Machine weight: 8000 kg
• Outside dimensions (machine body + travel + tank + generator): 3700 x 3930 x 3260 mm
• Electrode head to work table distance: 550 ~ 1050 mm
• Oil filter tank capacity: 2200 L
• Oil filter tank weight: 600 kg
• Paper filter: 8 pcs
• Oil filter tank outside dimensions: 2600 x 1600 x 580 mm
