Overview

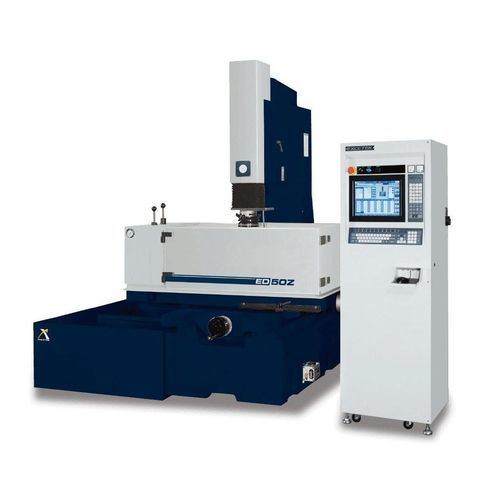

The ED50Z is a sinker EDM machine engineered for industrial die sinking and precision erosion of conductive materials. It provides an X/Y travel of 500 x 400 mm, Z travel of 200 mm and a work table measuring 800 x 450 mm, allowing machining of large workpieces up to 1120 x 640 x 375 mm and weights up to 1350 kg.

Specification

• U Travel: 300 mm
• Max. workpiece weight: 1350 kg
• Max. electrode weight: 220 kg
• Machine weight: 1950 kg
• Machine dimensions (L x W x H): 3980 x 1740 x 2300 mm
• Electrode head to work table distance: 240 ~ 740 mm

Oil filter tank

• Tank capacity: 520 L
• Tank weight: 200 kg
• Paper filter: 4 pcs

Features

• Superior Erosion Function - EXCETEK EDM uses a MOSFET sparking circuit to reduce electrode wear and increase erosion speed, enabling fine erosion with smooth surface finish.
• Simple Maintenance - Generator features front/back assembly modules with clear circuit layout and fuse protection to simplify inspection and PCB replacement.
• Stable Generator Performance - Separate double heat-flow system for hot components and cold circuits plus dedicated heat sinks improve generator stability and reduce maintenance needs.
• After-Sales Support - Comprehensive after-sales services including operation training, maintenance and application support to ensure uptime and customer satisfaction.

Accessories
Standard Accessories

• Alcohol extinguisher
• Working lamp
• Leveling pad
• Flushing unit
• Paper filter
• 1/2 Drill chuck
• Tools box
• Clamp jig

Options

• Oil cooling system
• Permanent magnetic pedestal
• Tungsten carbide sparking circuit

Technical specifications

• Model: ED50Z
• X/Y Travel: 500 x 400 mm
• Z Travel: 200 mm
• U Travel: 300 mm
• Work table: 800 x 450 mm
• Max. workpiece size: 1120 x 640 x 375 mm
• Max. workpiece weight: 1350 kg
• Max. electrode weight: 220 kg
• Machine weight: 1950 kg
• Machine dimensions (L x W x H): 3980 x 1740 x 2300 mm
• Electrode head to work table distance: 240 ~ 740 mm
• Oil filter tank capacity: 520 L
• Oil filter tank weight: 200 kg
• Paper filter: 4 pcs
